Structural · S-VGHXB

Typical Concrete Curb at Slab on Grade

Materials

Concrete

Elements

Floors / Slabs Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

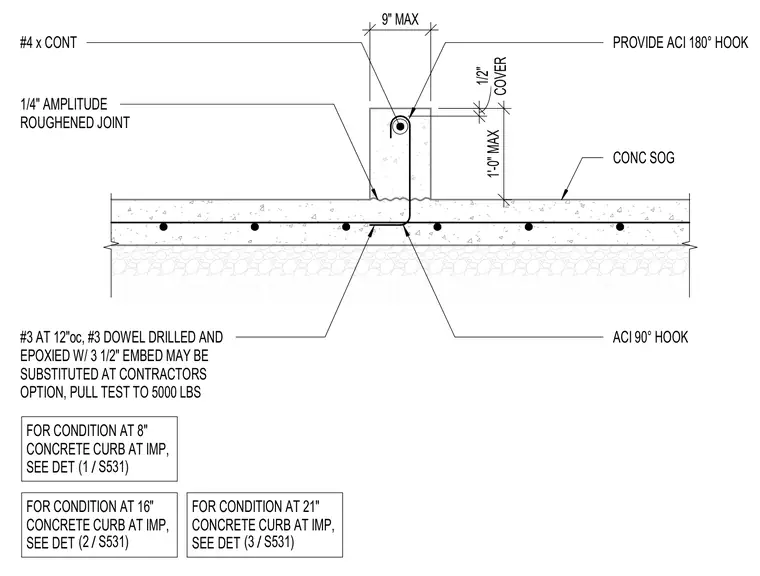

A concrete curb intersects a concrete slab on grade with a quarter-inch amplitude roughened joint at the interface. The curb is reinforced with a continuous number four rebar featuring an American Concrete Institute 180-degree hook and a one-half-inch maximum concrete cover. The slab contains number three bars spaced at twelve inches on center, with an option to substitute number three dowels drilled and epoxied with three and a half inches of embedment requiring a five-thousand-pound pull test. The dowel includes an American Concrete Institute 90-degree hook anchored into the slab. Notes direct the builder to alternate details for eight-inch, sixteen-inch, and twenty-one-inch concrete curbs at specific improvements.
