Structural · S-VGFR5

Concrete Tilt-Up Panel Opening Reinforcement Detail

Materials

Concrete Reinforced Concrete

Elements

Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

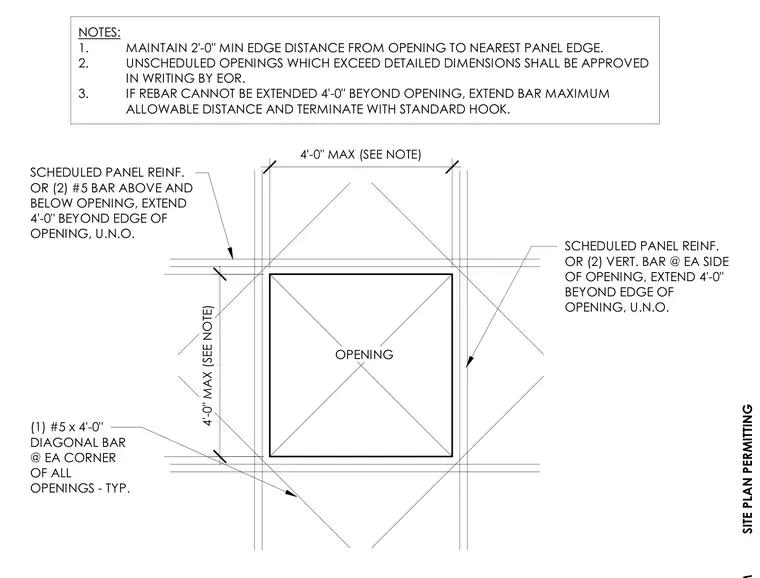

Reinforced concrete tilt-up panel opening featuring scheduled panel reinforcement or two vertical bars on each side extending four feet beyond the edge of the opening. Two number five bars are placed above and below the opening, extending four feet beyond the edge unless otherwise noted. One number five by four-foot diagonal bar is detailed at each corner of all openings as typical. A two-foot minimum edge distance must be maintained from the opening to the nearest panel edge. Unscheduled openings exceeding detailed dimensions require written approval from the engineer of record. If rebar cannot be extended four feet beyond the opening, the bar must extend the maximum allowable distance and terminate with a standard hook.
