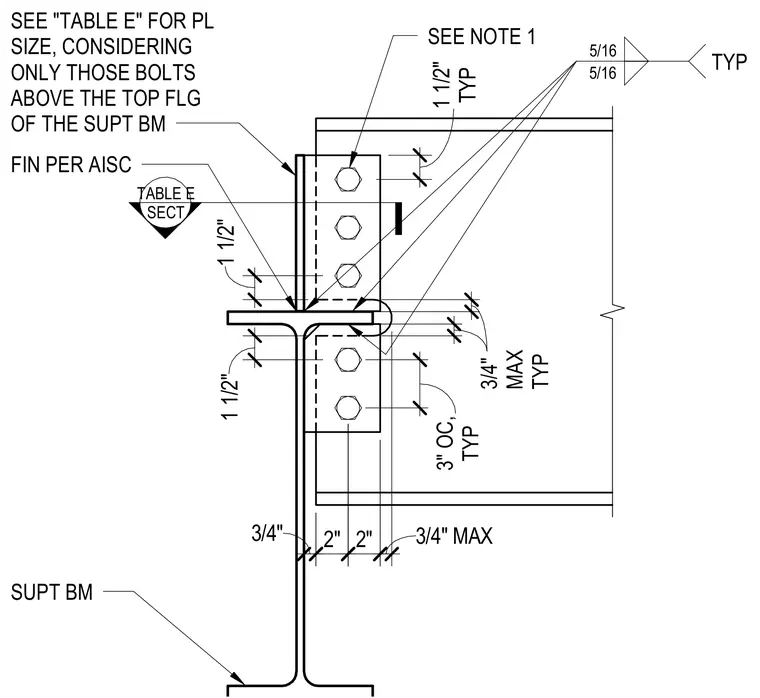

A supported steel beam frames into a supporting beam using a shear tab plate welded to the support and bolted to the supported beam web. The shear plate dimensions and sizing follow Table E, considering only those bolts positioned above the top flange of the supporting beam. Typical fillet welds secure the plate with specified clearances and dimensions including a three-quarter-inch maximum spacing. Edge distances, bolt spacing at three inches on center, and a coping detail at the beam flange intersection are clearly dimensioned.
SECT TABLE E 3/4" 3/4" 3/4" MAX TYP 3/4" MAX SUPT BM FIN PER AISC 1 1/2" 2" 2" 3/4" TYP 5/16 5/16 1 1/2" 3" TYP TYP 1 1/2" SEE NOTE 1 SEE "TABLE E" FOR PL SIZE, CONSIDERING ONLY THOSE BOLTS ABOVE THE TOP FLG OF THE SUPT BM 3" OC, TYP
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
