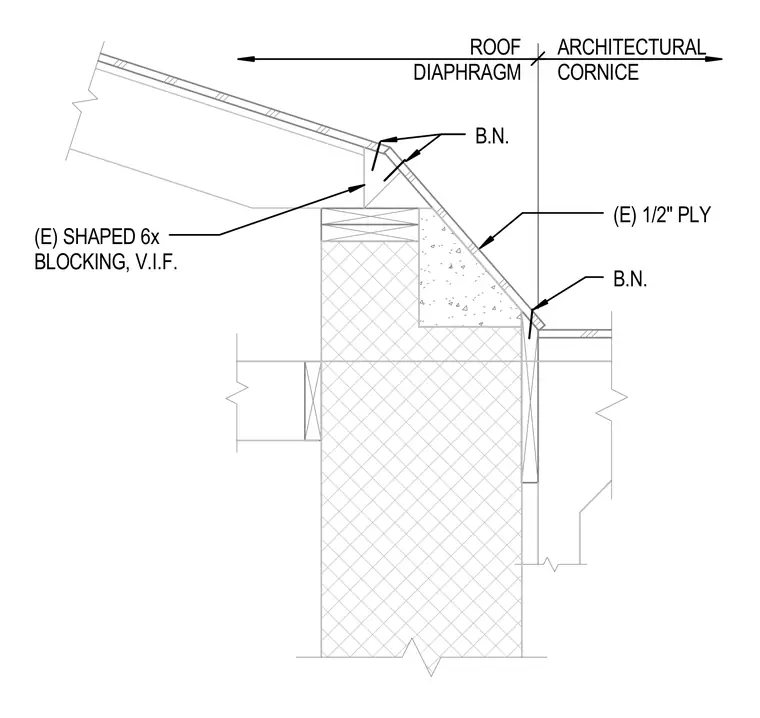

An existing shaped six-inch wood blocking sits atop the wall to support the sloping roof diaphragm. The assembly features existing one-half inch plywood sheathing verified in the field. B.N. notations indicate boundary nailing locations across the plywood and framing members.
ROOF DIAPHRAGM ARCHITECTURAL CORNICE (E) 1/2" PLY B.N. B.N. (E) SHAPED 6x BLOCKING, V.I.F.
