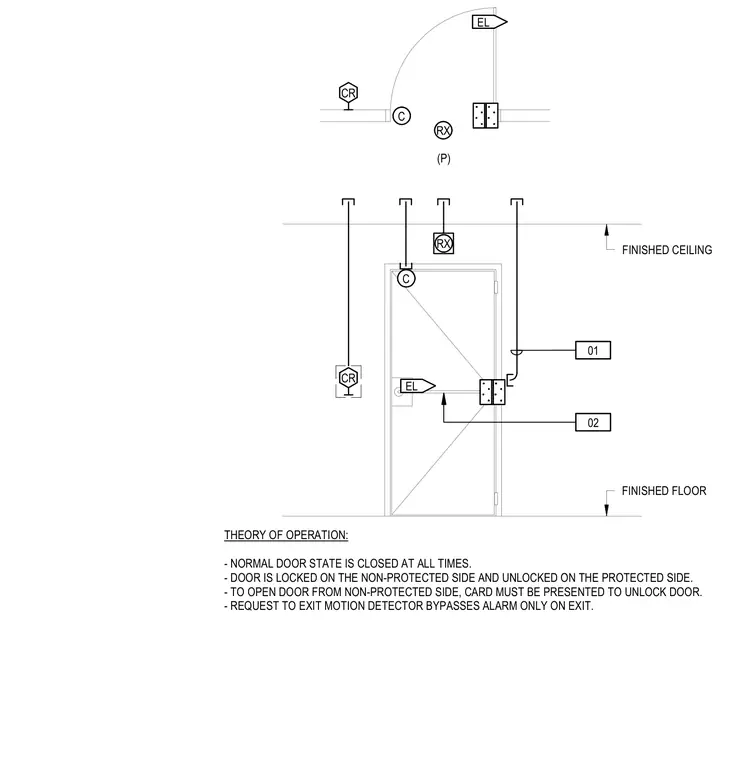

A security door installation shows a plan and elevation view with associated access control components including a card reader, request-to-exit motion detector, electric lock, and door contact. The normal door state is closed at all times and locked on the non-protected side. Card presentation on the non-protected side unlocks the door while the request-to-exit motion detector bypasses the alarm only on exit.
RX RX EL EL CR CR C C (P) FINISHED CEILING FINISHED FLOOR 01 02 THEORY OF OPERATION: - NORMAL DOOR STATE IS CLOSED AT ALL TIMES. - DOOR IS LOCKED ON THE NON-PROTECTED SIDE AND UNLOCKED ON THE PROTECTED SIDE. - TO OPEN DOOR FROM NON-PROTECTED SIDE, CARD MUST BE PRESENTED TO UNLOCK DOOR. - REQUEST TO EXIT MOTION DETECTOR BYPASSES ALARM ONLY ON EXIT.
