A flange connection plate matches the steel grade of the supporting beam and spans across the centerline with a dimension of one foot nine inches typical. A note specifies no weld over the transverse beam. Three-eighths-inch fillet welds secure the plate to the top flange, with typical details designated per plan. A shear tab connection on the beam web utilizes bolted fasteners per plan.

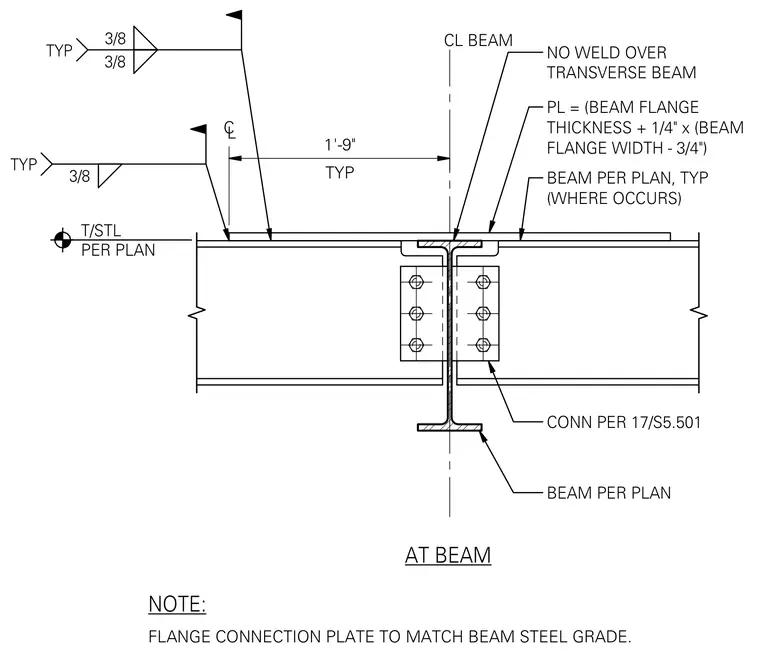

FLANGE CONNECTION PLATE TO MATCH BEAM STEEL GRADE. NOTE: CL BEAM T/STL PER PLAN CONN PER 17/S5.501 BEAM PER PLAN AT BEAM BEAM PER PLAN, TYP (WHERE OCCURS) PL = (BEAM FLANGE THICKNESS + 1/4" x (BEAM FLANGE WIDTH - 3/4") CL TYP 1'-9" 3/8 TYP 3/8 3/8 TYP NO WELD OVER TRANSVERSE BEAM
