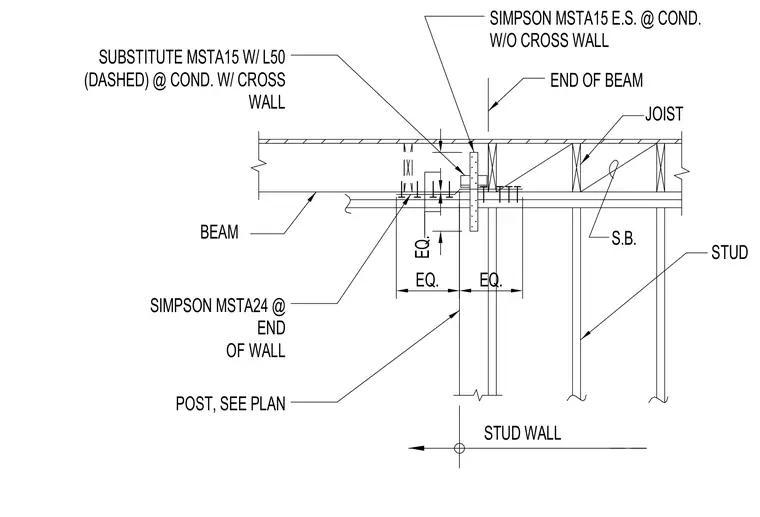

A timber beam intersects a stud wall supported by a post sized per plan. A Simpson MSTA15 strap tie is attached each side at conditions without a cross wall. Conditions with a cross wall substitute the MSTA15 strap with an L50 angle shown dashed. A Simpson MSTA24 strap is fastened at the end of the wall. Joists bear across the assembly tied with S.B. fasteners to the studs.
EQ. EQ. EQ. BEAM STUD WALL STUD S.B. JOIST SIMPSON MSTA15 E.S. @ COND. W/O CROSS WALL END OF BEAM SUBSTITUTE MSTA15 W/ L50 (DASHED) @ COND. W/ CROSS WALL SIMPSON MSTA24 @ END OF WALL POST, SEE PLAN
