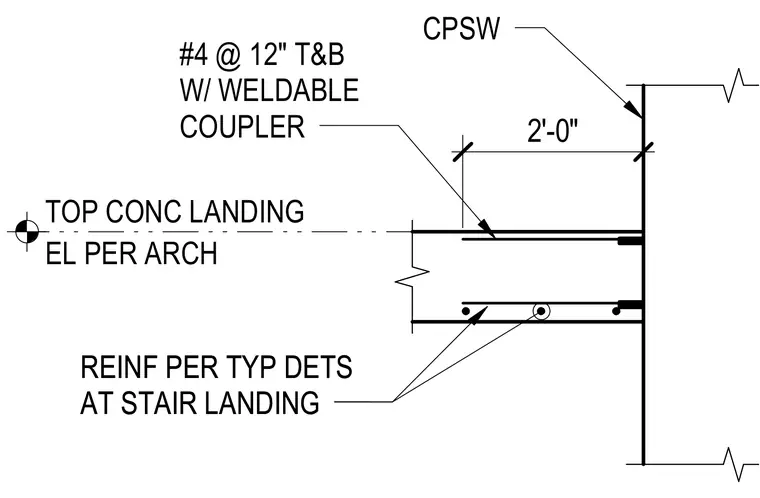

A concrete stair landing frames into a concrete shear wall using number four reinforcing bars spaced at twelve inches top and bottom with weldable couplers. Additional landing reinforcement is provided per typical details with a two-foot dimension from the face of the shear wall. The top of the concrete landing elevation is coordinated per architectural drawings.
EL PER ARCH TOP CONC LANDING REINF PER TYP DETS AT STAIR LANDING REINF PER TYP DETS AT STAIR LANDING 2'-0" #4 @ 12" T&B W/ WELDABLE COUPLER CPSW
