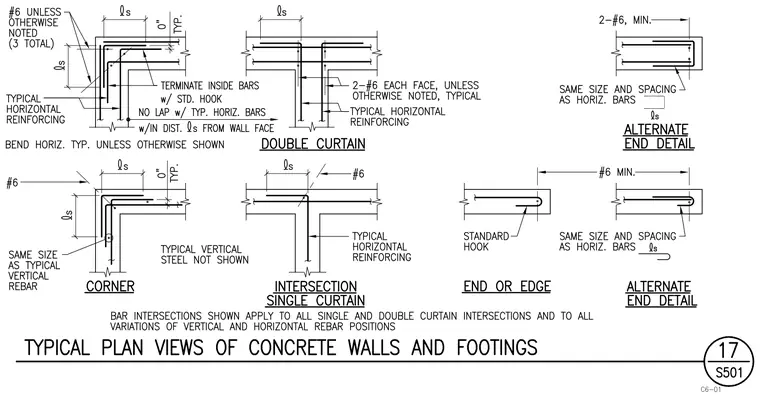

Concrete wall and footing intersections feature standard lap lengths and hook terminations for both single and double reinforcing bar curtains. Corner conditions utilize number 6 bars unless otherwise noted with three total bars bent horizontally with standard hooks terminating inside the bars without lapping within the lap splice distance from the wall face. Intersections incorporate two number 6 bars on each face with typical horizontal reinforcing. End and edge conditions provide standard hooks and alternate end details with specified minimum lap lengths and rebar spacing.
