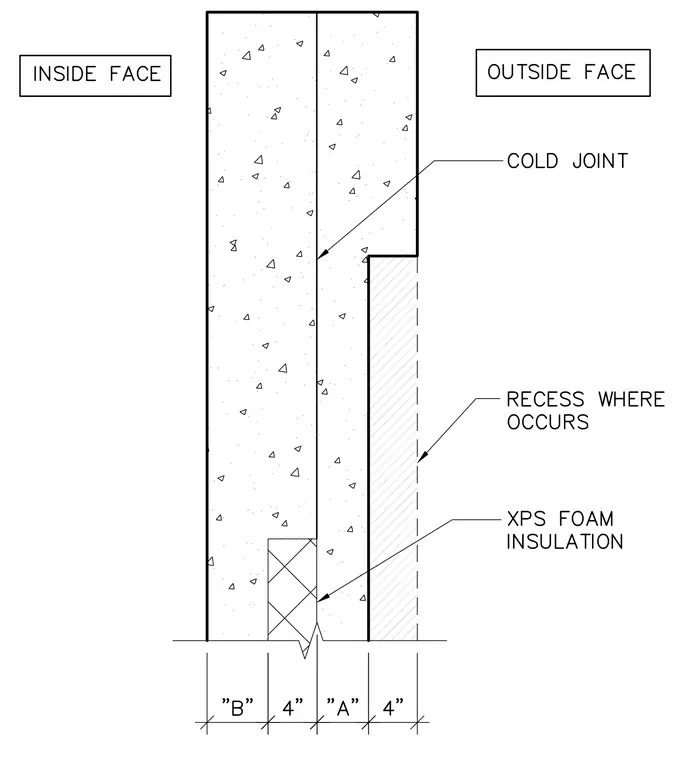

This concrete wall section details the transition between the inside face and the outside face, incorporating a cold joint and extruded polystyrene (XPS) foam insulation. The assembly includes dimensioned segments with width designations "A" and "B" adjacent to four-inch zones. A recessed area is indicated on the outside face where specified to occur. The drawing marks the interface between successive concrete placements at the cold joint.
