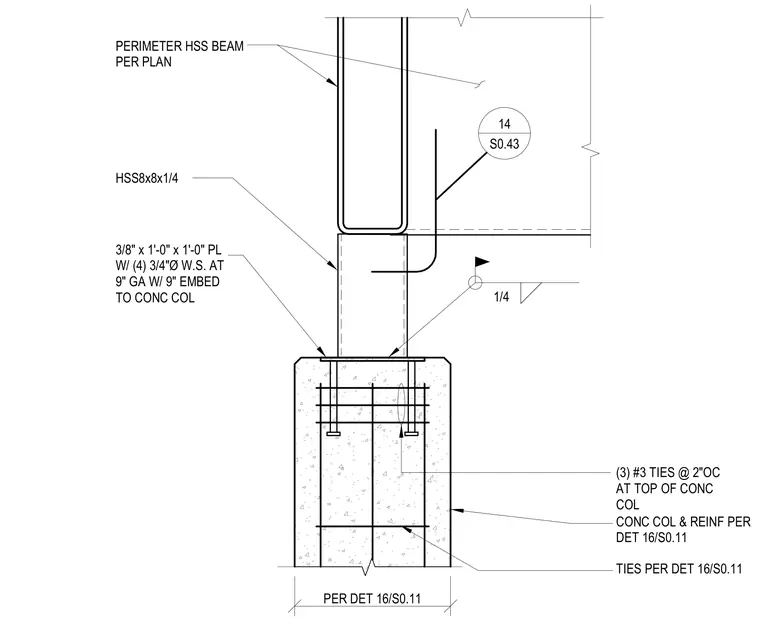

A perimeter hollow structural section beam, sized HSS8x8x1/4, bears on a concrete column. The connection utilizes a 3/8-inch by 1-foot by 1-foot steel plate embedded into the concrete with four 3/4-inch diameter welded stud anchors at a 9-inch gauge and 9-inch embedment depth. Three #3 ties spaced at 2 inches on center are provided at the top of the concrete column. Additional column reinforcement and ties are sized per detail 16/S0.11.
14 S0.43 PER DET 16/S0.11 3/8" x 1'-0" x 1'-0" PL W/ (4) 3/4"Ø W.S. AT 9" GA W/ 9" EMBED TO CONC COL (3) #3 TIES @ 2"OC AT TOP OF CONC COL TIES PER DET 16/S0.11 CONC COL & REINF PER DET 16/S0.11 PERIMETER HSS BEAM PER PLAN HSS8x8x1/4 1/4
