Structural · S-VFBAT

Panels Without Reveals or Recesses

Materials

Elements

About this detail

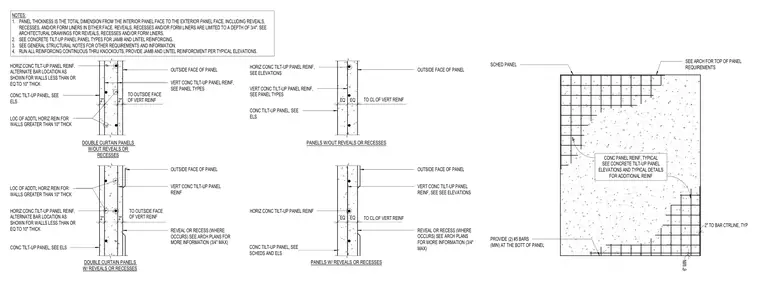

Structural concrete tilt-up wall panel reinforcement configurations for both single and double curtain conditions. Vertical and horizontal reinforcing bar placements with standard clearances, including alternating bar locations for walls ten inches thick or less. Additional notes specify maximum reveal and recess depths of three-quarters of an inch and detail minimum bottom bar requirements. Cross sections differentiate panels with reveals and recesses from those without.

NOTES: 1. PANEL THICKNESS IS THE TOTAL DIMENSION FROM THE INTERIOR PANEL FACE TO THE EXTERIOR PANEL FACE, INCLUDING REVEALS, RECESSES, AND/OR FORM LINERS IN EITHER FACE. REVEALS, RECESSES AND/OR FORM LINERS ARE LIMITED TO A DEPTH OF 3/4". SEE ARCHITECTURAL DRAWINGS FOR REVEALS, RECESSES AND/OR FORM LINERS. 2. SEE CONCRETE TILT-UP PANEL PANEL TYPES FOR JAMB AND LINTEL REINFORCING. 3. SEE GENERAL STRUCTURAL NOTES FOR OTHER REQUIREMENTS AND INFORMATION. 4. RUN ALL REINFORCING CONTINUOUS THRU KNOCKOUTS, PROVIDE JAMB AND LINTEL REINFORCMENT PER TYPICAL ELEVATIONS. OUTSIDE FACE OF PANEL OUTSIDE FACE OF PANEL VERT CONC TILT-UP PANEL REINF REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFORMATION (3/4" MAX) HORIZ CONC TILT-UP PANEL REINF, ALTERNATE BAR LOCATION AS SHOWN FOR WALLS LESS THAN OR EQ TO 10" THICK HORIZ CONC TILT-UP PANEL REINF, ALTERNATE BAR LOCATION AS SHOWN FOR WALLS LESS THAN OR EQ TO 10" THICK VERT CONC TILT-UP PANEL REINF, SEE PANEL TYPES TO OUTSIDE FACE OF VERT REINF TO OUTSIDE FACE OF VERT REINF DOUBLE CURTAIN PANELS W/OUT REVEALS OR RECESSES DOUBLE CURTAIN PANELS W/ REVEALS OR RECESSES CONC TILT-UP PANEL, SEE ELS CONC TILT-UP PANEL, SEE ELS 2" 2" SCHED PANEL PROVIDE (2) #5 BARS (MIN) AT THE BOTT OF PANEL SEE ARCH FOR TOP OF PANEL REQUIREMENTS CONC PANEL REINF, TYPICAL SEE CONCRETE TILT-UP PANEL ELEVATIONS AND TYPICAL DETAILS FOR ADDITIONAL REINF 6" MIN 2" TO BAR CTRLINE, TYP 2" 2" PANELS W/OUT REVEALS OR RECESSES PANELS W/ REVEALS OR RECESSES OUTSIDE FACE OF PANEL OUTSIDE FACE OF PANEL VERT CONC TILT-UP PANEL REINF, SEE SEE ELEVATIONS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFORMATION (3/4" MAX) HORIZ CONC TILT-UP PANEL REINF HORIZ CONC TILT-UP PANEL REINF, SEE ELEVATIONS VERT CONC TILT-UP PANEL REINF, SEE PANEL TYPES TO CL OF VERT REINF TO CL OF VERT REINF EQ EQ CONC TILT-UP PANEL, SEE SCHEDS AND ELS EQ EQ CONC TILT-UP PANEL, SEE ELS LOC OF ADDTL HORIZ REIN FOR WALLS GREATER THAN 10" THICK LOC OF ADDTL HORIZ REIN FOR WALLS GREATER THAN 10" THICK
