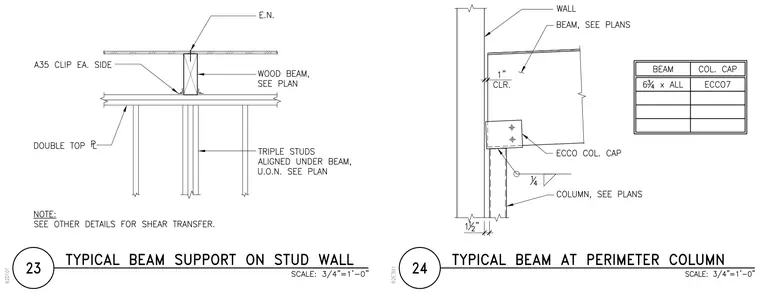

A wood beam bears on a double top plate over triple studs aligned beneath the beam, secured with A35 clips on each side. A note specifies to see other details for shear transfer. Another detail shows a wood beam framing near a wall with a one-inch clearance, supported by an ECCO column cap welded to a column with a quarter-inch fillet weld.
