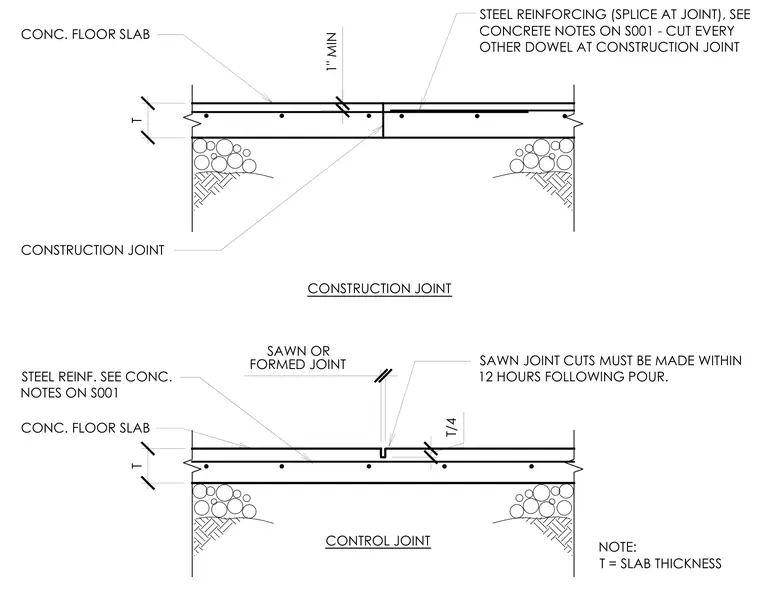

Concrete floor slab construction and control joints. The construction joint includes a steel reinforcing splice across the joint with every other dowel cut per structural notes, maintaining a one-inch minimum spacing. The control joint features a sawn or formed joint cut to a depth of one-quarter of the slab thickness, with saw cuts mandated within twelve hours following the concrete pour.
T T/4 SAWN OR FORMED JOINT CONC. FLOOR SLAB NOTE: T = SLAB THICKNESS CONC. FLOOR SLAB STEEL REINFORCING (SPLICE AT JOINT), SEE CONCRETE NOTES ON S001 - CUT EVERY OTHER DOWEL AT CONSTRUCTION JOINT CONSTRUCTION JOINT CONTROL JOINT CONSTRUCTION JOINT 1" MIN STEEL REINF. SEE CONC. NOTES ON S001 SAWN JOINT CUTS MUST BE MADE WITHIN 12 HOURS FOLLOWING POUR. T
