Composite Steel Beam and Metal Deck Framing Connection

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Floors / Slabs Decks

Connections

Shear Stud / Composite

About this detail

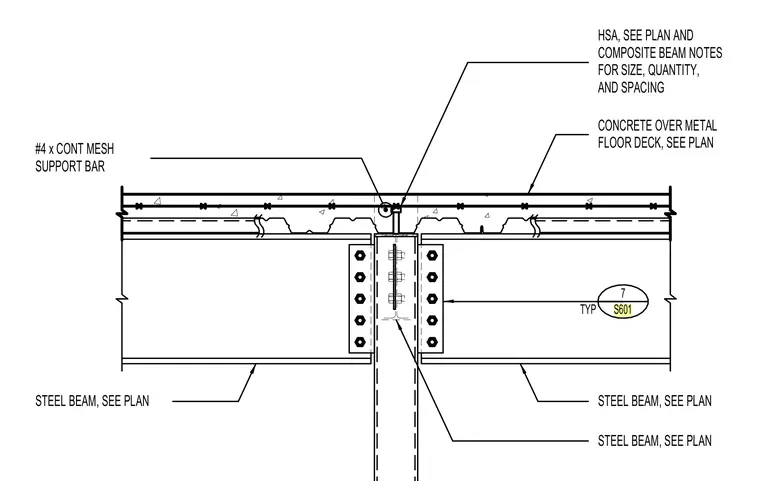

Concrete over metal floor deck rests atop structural steel beams that frame into a central steel column using bolted shear tab connections. A number four continuous mesh support bar runs parallel to the deck flutes alongside headed stud anchors sized per plan. Sizing, quantity, and spacing for the shear connections and anchors are determined by structural plans and composite beam notes.
