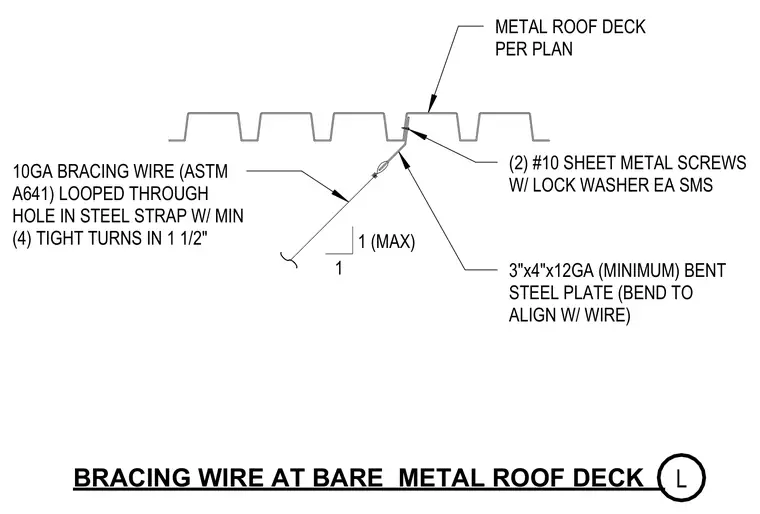

A ten-gauge ASTM A641 bracing wire is secured to a bare metal roof deck using a three-inch by four-inch by twelve-gauge minimum bent steel plate. The bent plate is aligned with the wire and fastened to the metal roof deck using two number ten sheet metal screws with lock washers on each screw. The bracing wire loops through a hole in the steel strap with a minimum of four tight turns in one and a half inches.
BRACING WIRE AT BARE METAL ROOF DECK METAL ROOF DECK PER PLAN 3"x4"x12GA (MINIMUM) BENT STEEL PLATE (BEND TO ALIGN W/ WIRE) (2) #10 SHEET METAL SCREWS W/ LOCK WASHER EA SMS 1 1 (MAX) 10GA BRACING WIRE (ASTM A641) LOOPED THROUGH HOLE IN STEEL STRAP W/ MIN (4) TIGHT TURNS IN 1 1/2" L
