Elevator Pit Divider Beam Details at Concrete Wall and Steel Beam

Materials

Elements

About this detail

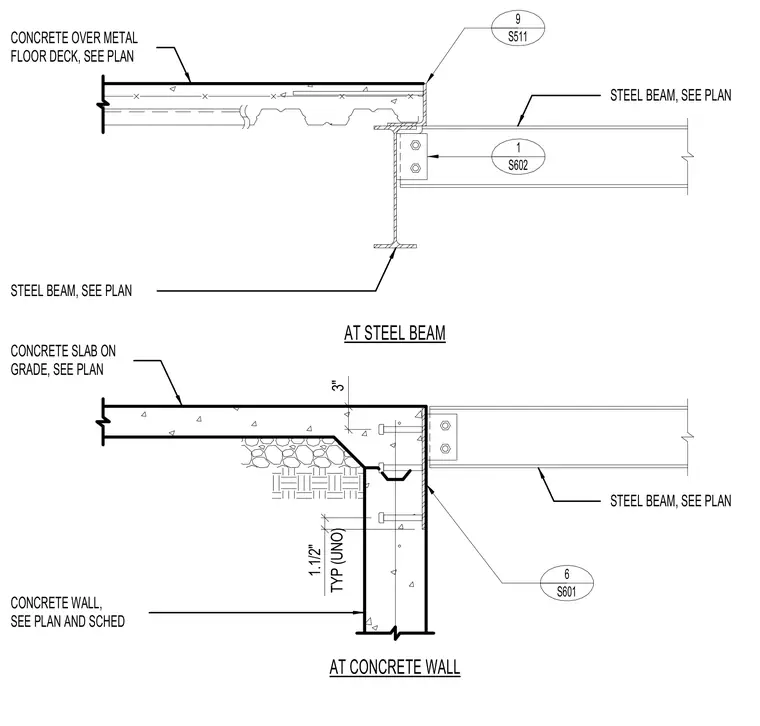

Steel framing connections for elevator pit divider beams tie into adjacent concrete walls and steel beams sized per plan. The top detail shows a steel beam framing into a concrete over metal floor deck assembly, supported by a shear tab connection with bolts. The bottom detail shows a steel beam framing into a concrete wall and concrete slab on grade, also utilizing a bolted shear tab connection and embedded plates. Dimensions indicate typical clearances such as three inches and one and one-half inches typical unless otherwise noted.
