Metal deck panels span across perimeter supports and intermediate structural supports. Fastener locations are indicated for deck-to-support connections parallel and perpendicular to the deck span. Deck-to-deck side lap attachments are spaced along the seams between adjacent fluted panels. Legend notations define the orientation symbols used for parallel and perpendicular support attachments.

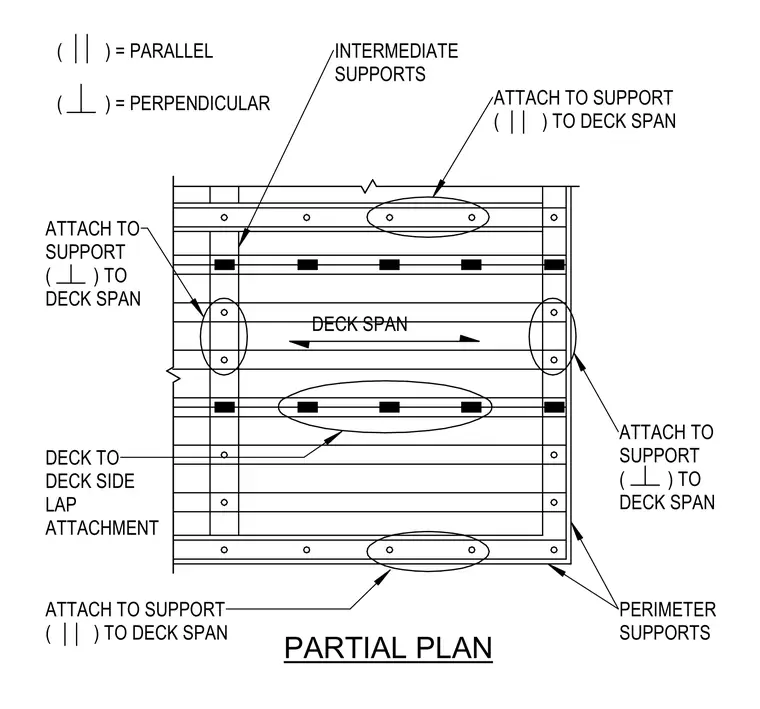

PARTIAL PLAN ( ) = PERPENDICULAR ( ) = PARALLEL INTERMEDIATE SUPPORTS ATTACH TO SUPPORT ( ) TO DECK SPAN DECK SPAN PERIMETER SUPPORTS ATTACH TO SUPPORT ( ) TO DECK SPAN DECK TO DECK SIDE LAP ATTACHMENT ATTACH TO SUPPORT ( ) TO DECK SPAN ATTACH TO SUPPORT ( ) TO DECK SPAN
