An existing hollow structural section column bears on a two-foot square base plate anchored to a concrete footing with four one-and-one-quarter-inch diameter by four-foot long anchor bolts. New epoxy anchor rods are provided per schedule. A non-shrink grout pack fills the space beneath the base plate atop the concrete footing. Centerlines and typical edge dimensions locate the column and anchor bolt layout.

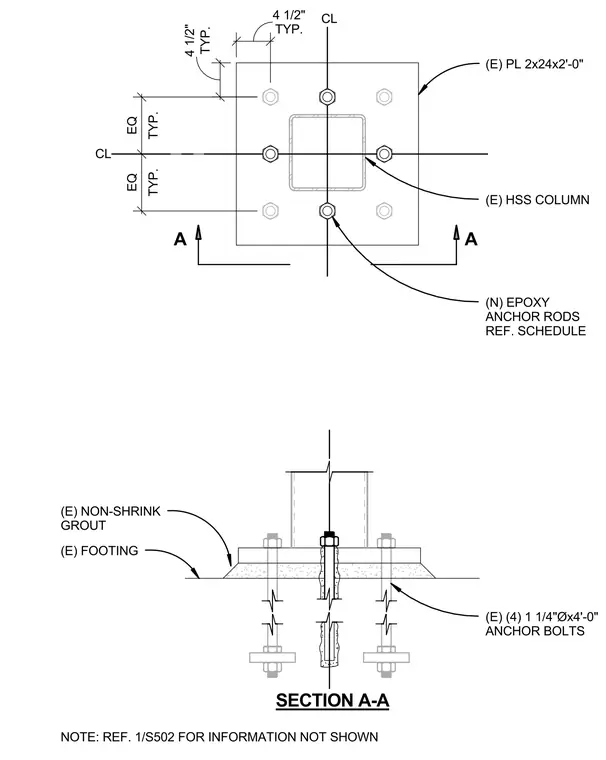

TYP. 4 1/2" TYP. 4 1/2" (E) PL 2x24x2'-0" (E) HSS COLUMN A A (E) NON-SHRINK GROUT (E) FOOTING (E) (4) 1 1/4"Øx4'-0" ANCHOR BOLTS SECTION A-A CL CL TYP. EQ TYP. EQ (N) EPOXY ANCHOR RODS REF. SCHEDULE NOTE: REF. 1/S502 FOR INFORMATION NOT SHOWN
