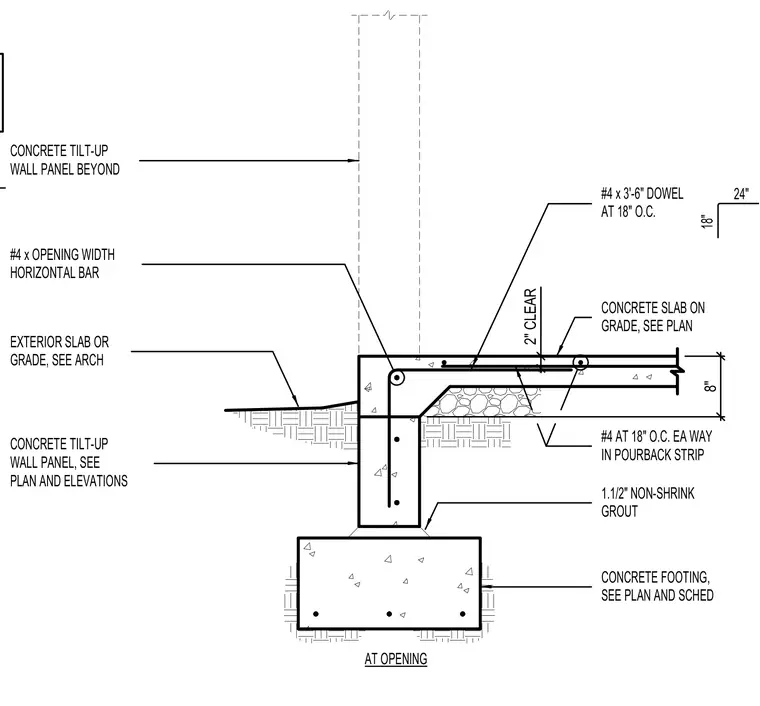

A concrete tilt-up wall panel bears on a concrete footing with one and one-half inches of non-shrink grout. An exterior slab on grade connects to the assembly using a pourback strip containing number four reinforcing bars at eighteen inches on center each way. A number four by three-foot-six-inch dowel is placed at eighteen inches on center. A number four horizontal bar spans the opening width.
CONCRETE SLAB ON GRADE, SEE PLAN EXTERIOR SLAB OR GRADE, SEE ARCH 1.1/2" NON-SHRINK GROUT #4 x 3'-6" DOWEL AT 18" O.C. 24" 18" #4 AT 18" O.C. EA WAY IN POURBACK STRIP CONCRETE TILT-UP WALL PANEL BEYOND #4 x OPENING WIDTH HORIZONTAL BAR CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE TILT-UP WALL PANEL, SEE PLAN AND ELEVATIONS AT OPENING 8" 2" CLEAR
