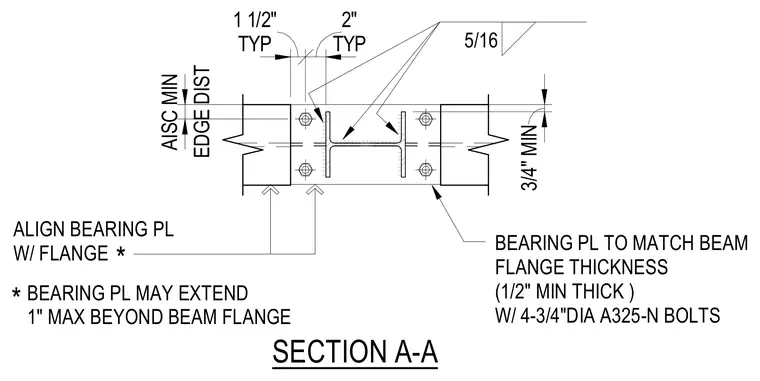

A steel beam flange connects to a matching bearing plate with a minimum one-half inch thickness, secured by four three-quarter-inch diameter A325-N bolts. The bearing plate aligns with the beam flange and may extend up to one inch maximum beyond it. Connection geometry maintains an AISC minimum edge distance with three-quarter-inch minimum spacing, utilizing five-sixteenth-inch fillet welds.
BEARING PL TO MATCH BEAM FLANGE THICKNESS (1/2" MIN THICK ) W/ 4-3/4"DIA A325-N BOLTS ALIGN BEARING PL W/ FLANGE BEARING PL MAY EXTEND 1" MAX BEYOND BEAM FLANGE * * SECTION A-A 5/16 TYP 1 1/2" TYP 2" EDGE DIST AISC MIN 3/4" MIN
