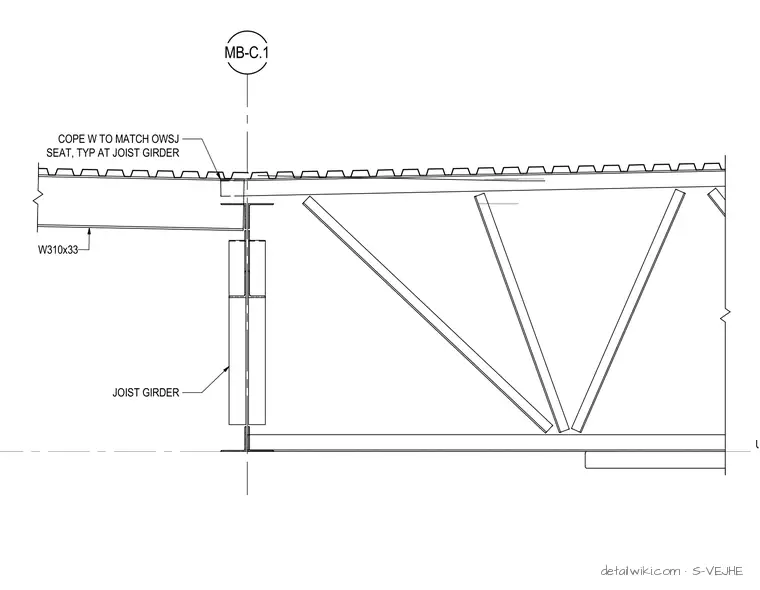

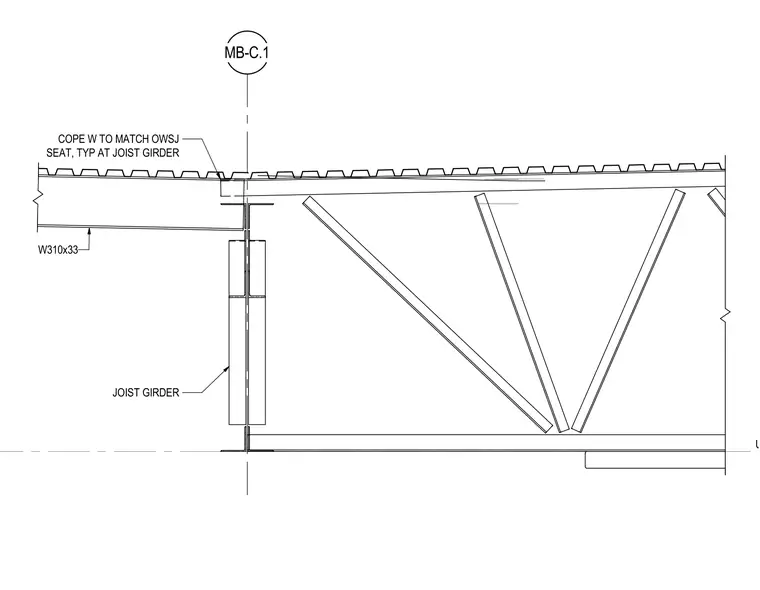

The drawing illustrates a steel connection where a wide-flange beam (W310x33) frames into or intersects with an open web steel joist girder. The top flange of the wide-flange beam is coped to match the open web steel joist seat. Corrugated metal decking runs continuously across the top chords of the structural members.
Text on the drawing
MB-C.1 U/S JOISTS AND TRUSSES W310x33 JOIST GIRDER COPE W TO MATCH OWSJ SEAT, TYP AT JOIST GIRDER
