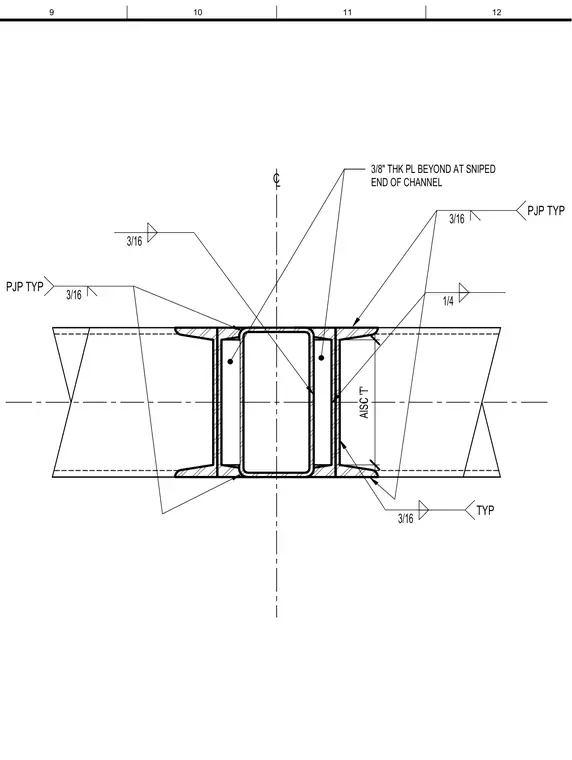

This structural connection details the assembly at a modular centerline using steel channels joined with an AISC tee section. A three-eighths-inch thick plate is positioned beyond the sniped end of the channel to reinforce the joint. Welds are specified as three-sixteenths-inch and one-quarter-inch fillet welds, along with partial-joint-penetration welds typically applied throughout the assembly.
3/16 3/16 PJP TYP 3/8" THK PL BEYOND AT SNIPED END OF CHANNEL AISC 'T' C L 1/4 3/16 TYP 3/16 PJP TYP 9 10 11 12
