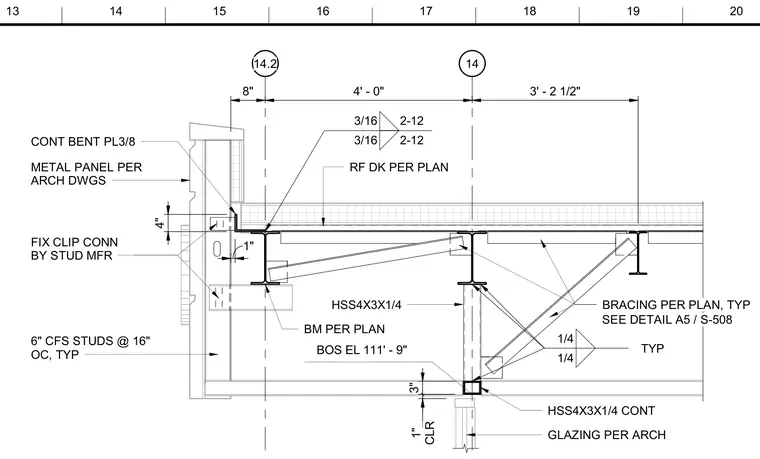

A roof framing connection occurs at an exterior wall assembly. The roof deck is supported by steel beams sized per plan, tied into an HSS4x3x1/4 continuous horizontal member with 3/16 inch welds. A continuous 3/8 inch bent plate anchors the assembly at the exterior edge behind exterior metal panels detailed per architectural drawings. Below, 6 inch cold-formed steel studs spaced at 16 inches on center feature fixed clip connections supplied by the stud manufacturer. Structural bracing uses HSS4x3x1/4 members connected with typical 1/4 inch welds, bearing above glazing provided per architectural drawings with a 1 inch clearance.
14 14.2 8" 4' - 0" 3' - 2 1/2" 3/16 2-12 3/16 2-12 METAL PANEL PER ARCH DWGS BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 1" BRACING PER PLAN, TYP SEE DETAIL A5 / S-508 GLAZING PER ARCH HSS4X3X1/4 CONT 1/4 1/4 TYP HSS4X3X1/4 6" CFS STUDS @ 16" OC, TYP FIX CLIP CONN BY STUD MFR 4" BOS EL 111' - 9" CLR 1" 3" 13 15 17 19 14 16 18 20
