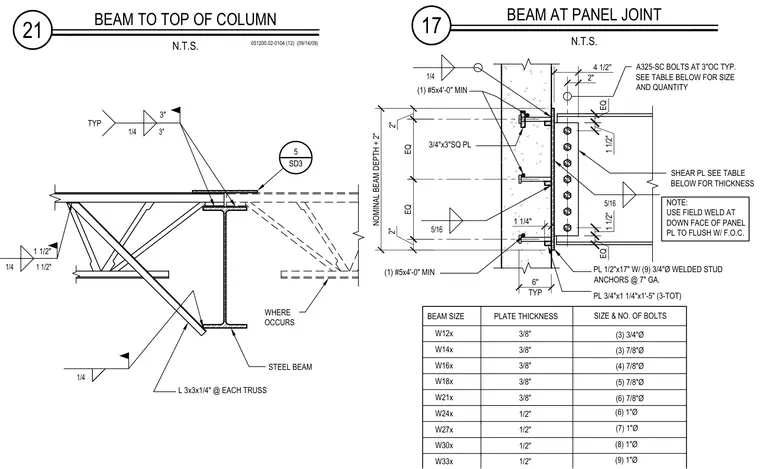

A steel beam frames into a concrete panel joint using a half-inch by seventeen-inch plate equipped with nine three-quarter-inch diameter welded stud anchors at seven-inch gauge, paired with a shear plate whose thickness is determined by the beam size from a companion schedule. Three-quarter-inch by three-inch square plates and one-quarter-inch fillet welds secure the embedded assembly, while A325-SC bolts fasten the beam web with counts ranging from three to nine depending on the W-shape member. A field weld is specified at the down face of the panel plate, which is set flush with the face of concrete. An open-web steel joist or truss bears on a supporting wide-flange steel beam, anchored with three-by-three-by-one-quarter-inch angles at each truss and welded with quarter-inch fillet welds. Reinforcing steel includes one number-five bar by four feet zero inches minimum at the top and bottom of the connection.
17 BEAM AT PANEL JOINT N.T.S. 21 BEAM TO TOP OF COLUMN N.T.S. 051200.02-0104 (12) (09/14/09) L 3x3x1/4" @ EACH TRUSS STEEL BEAM WHERE OCCURS 1/4 3" 3" TYP 1/4 1/4 1 1/2" 1 1/2" PLATE THICKNESS W14x W16x W18x W30x W24x W27x W21x W12x 1 1/4" PL 3/4"x1 1/4"x1'-5" (3-TOT) PL 1/2"x17" W/ (9) 3/4"Ø WELDED STUD ANCHORS @ 7" GA. (3) 7/8"Ø (6) 1"Ø (8) 1"Ø (7) 1"Ø (3) 3/4"Ø 3/8" SIZE & NO. OF BOLTS 2" 4 1/2" NOMINAL BEAM DEPTH + 2" 2" EQ EQ 1/4 (1) #5x4'-0" MIN 3/4"x3"SQ PL 5/16 (1) #5x4'-0" MIN SHEAR PL SEE TABLE BELOW FOR THICKNESS 5/16 BEAM SIZE (4) 7/8"Ø (6) 7/8"Ø NOTE: USE FIELD WELD AT DOWN FACE OF PANEL PL TO FLUSH W/ F.O.C. 2" 6" TYP W33x (9) 1"Ø A325-SC BOLTS AT 3"OC TYP. SEE TABLE BELOW FOR SIZE AND QUANTITY 1 1/2" EQ 1 1/2" EQ 3/8" 3/8" 3/8" 3/8" 1/2" 1/2" 1/2" 1/2" (5) 7/8"Ø 5 SD3
