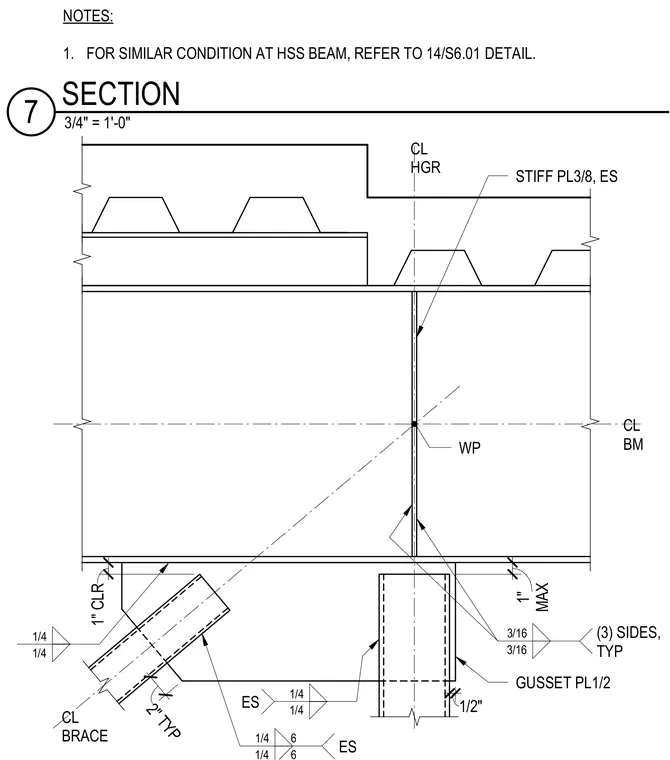

A one-half inch thick gusset plate connects a diagonal structural brace to a steel beam with a one-inch clearance maximum. Three-eighths inch stiffener plates are welded to each side of the beam web aligned with the centerline of the hanger. The gusset plate is welded to the beam with quarter-inch welds on each side. A note directs attention to detail 14/S6.01 for a similar condition at an HSS beam.
NOTES: 1. FOR SIMILAR CONDITION AT HSS BEAM, REFER TO DETAIL. 14/S6.01 CL BM CL HGR CL BRACE GUSSET PL1/2 STIFF PL3/8, ES 1/4 1/4 ES 6 1/4 ES 1/4 1/4 (3) SIDES, TYP 3/16 3/16 WP 2" TYP 1" CLR MAX 1" 1/2" 3/4" = 1'-0" 7 SECTION
