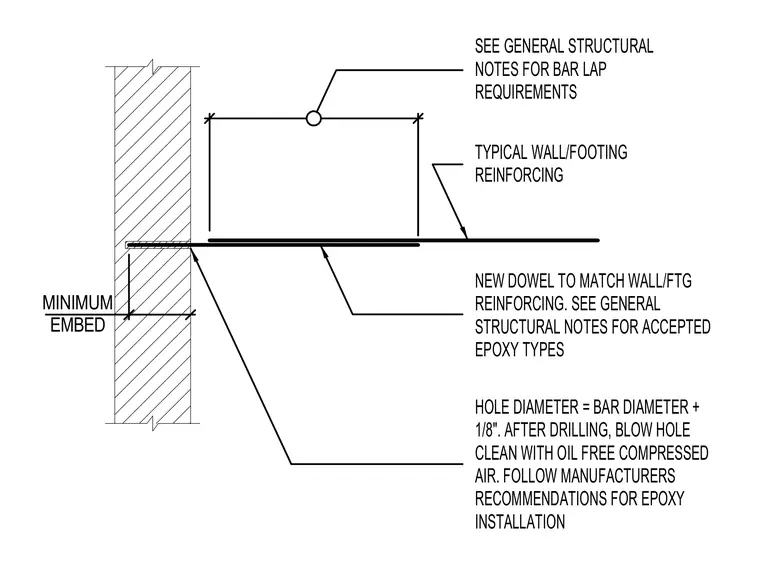

A new reinforcing dowel is embedded into a concrete wall or footing using an approved epoxy adhesive matching the size of the wall and footing reinforcing. The drilled hole diameter equals the bar diameter plus one-eighth of an inch. After drilling, the hole is blown clean with oil-free compressed air following the manufacturer recommendations for epoxy installation. Bar lap requirements and accepted epoxy types are referenced from general structural notes.
MINIMUM EMBED REINFORCING REQUIREMENTS TYPICAL WALL/FOOTING NOTES FOR BAR LAP SEE GENERAL STRUCTURAL INSTALLATION RECOMMENDATIONS FOR EPOXY AIR. FOLLOW MANUFACTURERS CLEAN WITH OIL FREE COMPRESSED 1/8". AFTER DRILLING, BLOW HOLE HOLE DIAMETER = BAR DIAMETER + STRUCTURAL NOTES FOR ACCEPTED REINFORCING. SEE GENERAL NEW DOWEL TO MATCH WALL/FTG EPOXY TYPES
