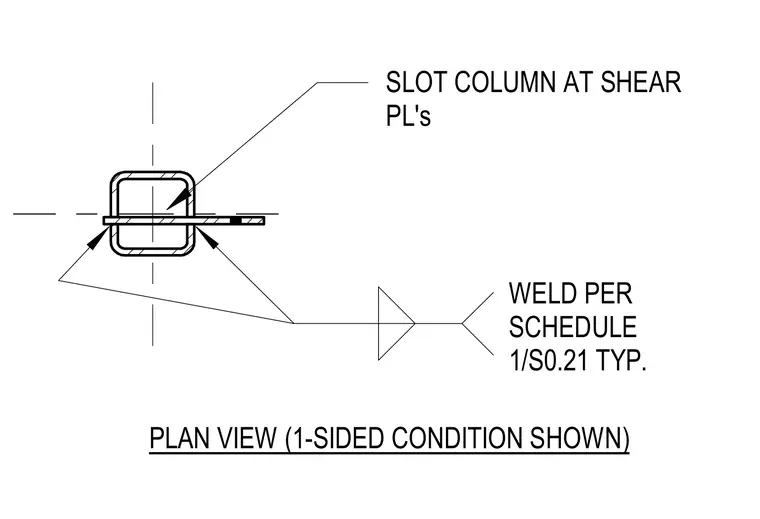

The hollow structural section column is slotted to receive the shear plates that pass through the profile. The connection is welded according to the structural schedule referenced on the sheet. This one-sided condition details the intersection of the framing members with the main vertical support.
PLAN VIEW (1-SIDED CONDITION SHOWN) WELD PER SCHEDULE 1/S0.21 TYP. SLOT COLUMN AT SHEAR PL's
