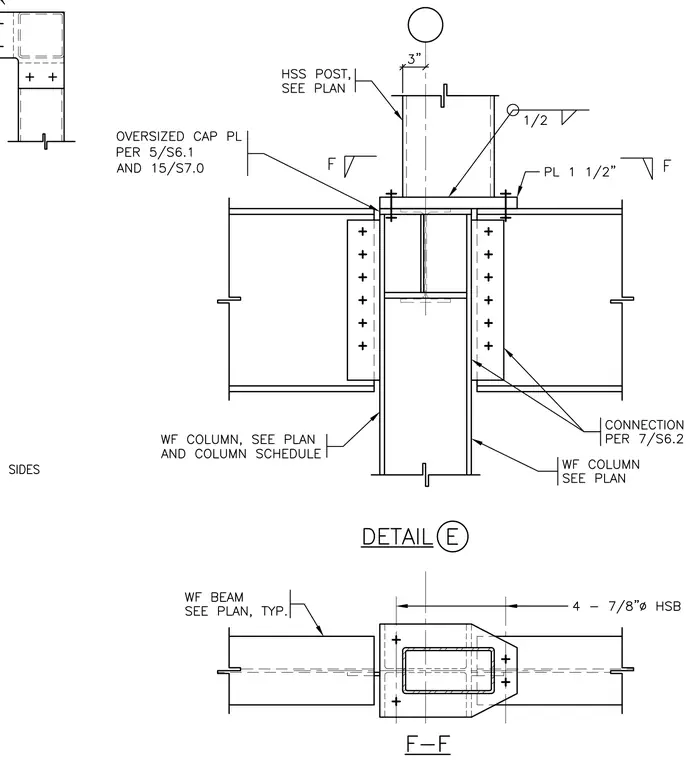

An HSS post bears on a one-and-a-half-inch thick plate set atop a wide flange column, secured with a half-inch weld and anchor bolts. The assembly includes an oversized cap plate detailed per sheets 5/S6.1 and 15/S7.0, with wide flange beams framing into the column web and flanges using connection details per sheet 7/S6.2. Section F-F provides the plan view of the post base and framing arrangement with four seven-eighths-inch high-strength bolts. The wide flange column is sized per plan and the column schedule.
