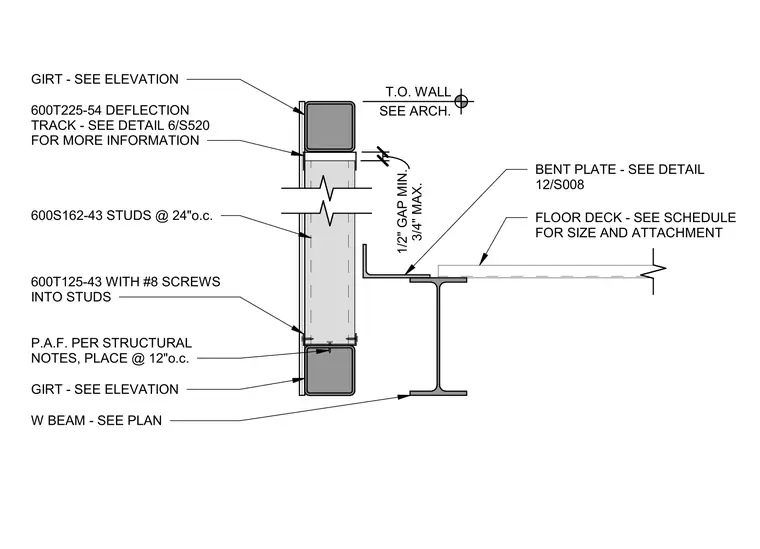

600S162-43 cold-formed steel studs spaced at 24 inches on center frame between top and bottom girts. A 600T225-54 deflection track at the top of the wall maintains a gap between 1/2 inch minimum and 3/4 inch maximum below the top of the wall. The 600T125-43 bottom track secures to the lower girt with number 8 screws and powder-actuated fasteners spaced at 12 inches on center. A bent plate connects the floor deck to the W-beam, with deck size and attachment specified per the structural schedule.
