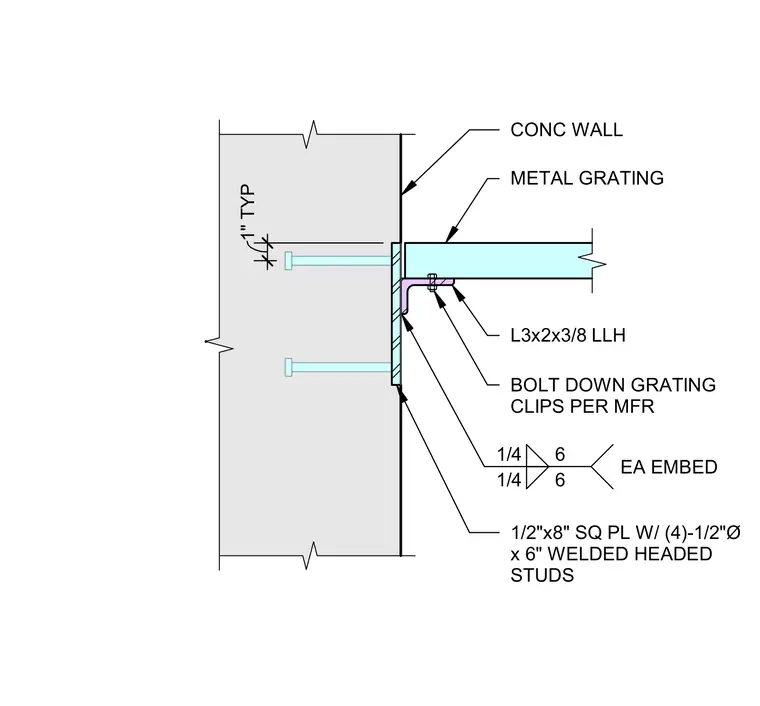

Metal grating bears on an L3x2x3/8 angle attached with bolt down grating clips per manufacturer. The support angle is welded to a one-half-inch by eight-inch square embed plate with four one-half-inch diameter by six-inch welded headed studs. The embed plate is cast flush into the concrete wall.
L3x2x3/8 LLH BOLT DOWN GRATING CLIPS PER MFR 1/4 6 1/4 6 EA EMBED 1/2"x8" SQ PL W/ (4)-1/2"Ø x 6" WELDED HEADED STUDS METAL GRATING CONC WALL 1" TYP
