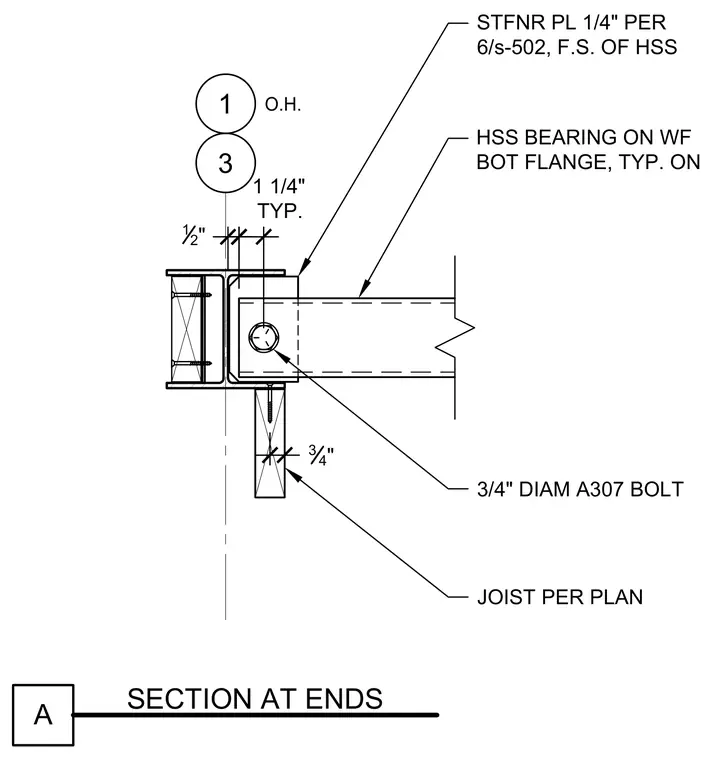

A hollow structural section bears on the bottom flange of a wide flange beam and connects with a three-quarter-inch diameter A307 bolt. A one-quarter-inch stiffener plate welds to the far side of the hollow structural section per detail specifications. A wood joist per plan is positioned adjacent to the assembly.
A SECTION AT ENDS 3 1 O.H. 3 4 " 1 1/4" TYP. JOIST PER PLAN HSS BEARING ON WF BOT FLANGE, TYP. ON 3/4" DIAM A307 BOLT STFNR PL 1/4" PER 6/s-502, F.S. OF HSS 12 "
