Structural · S-VCWCY

Wall Perpendicular to Steel Roof Deck

Materials

Concrete Steel Masonry / CMU

Elements

Beams Walls Roofs Floors / Slabs Decks Bracing Connections / Plates

Connections

Bracing Connection

About this detail

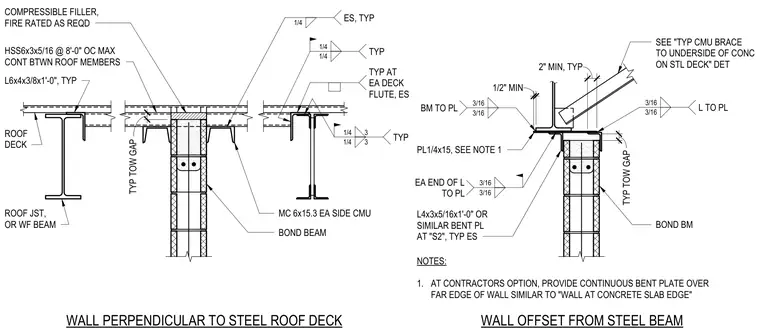

A concrete masonry unit wall is positioned perpendicularly to a steel roof deck, featuring hollow structural section struts spanning continuously between roof members at eight feet on center maximum. Channel shapes measuring MC6x15.3 attach to each side of the CMU wall, while a compressible, fire-rated filler seals the top of wall gap. An angle measuring L6x4x3/8 by one foot zero inches typical connects via quarter-inch fillet welds at each deck flute. A secondary detail shows a wall offset from the steel beam utilizing a bond beam plate measuring one-quarter by fifteen inches, angles measuring L4x3x5/16 by one foot zero inches or similar bent plates, and three-sixteenths fillet welds.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
