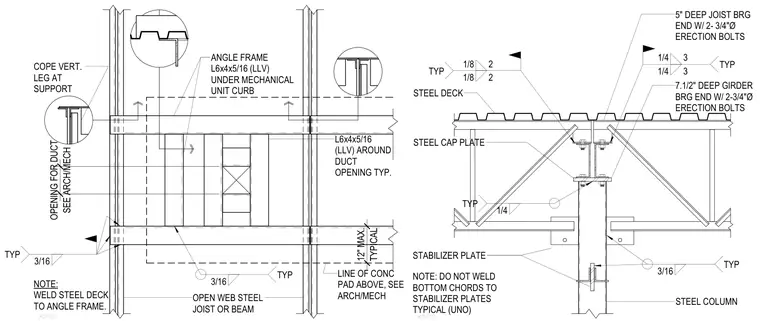

An open web steel joist and a seven-and-a-half-inch deep girder bear on a steel column with a steel cap plate, secured using two three-quarter-inch diameter erection bolts at each bearing end. Stabilizer plates are positioned below, with bottom chords left unwelded to the stabilizer plates typically unless noted otherwise. A steel deck bears across the top chords and is welded with typical fillet welds. An angle frame made of L6x4x5/16 with the long leg vertical is provided under the mechanical unit curb and around duct openings, with the vertical leg coped at the support and the steel deck welded to the angle frame.
JK2RTS12 STABILIZER PLATE STEEL CAP PLATE STEEL DECK STEEL COLUMN 5" DEEP JOIST BRG END W/ 2- 3/4"Ø ERECTION BOLTS 7.1/2" DEEP GIRDER BRG END W/ 2-3/4"Ø ERECTION BOLTS NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) 3/16 TYP 1/4 3 1/4 3 TYP 1/8 2 1/8 2 TYP 1/4 TYP JK2RTS17 OPEN WEB STEEL JOIST OR BEAM ANGLE FRAME L6x4x5/16 (LLV) UNDER MECHANICAL UNIT CURB NOTE: WELD STEEL DECK TO ANGLE FRAME. COPE VERT. LEG AT SUPPORT L6x4x5/16 (LLV) AROUND DUCT OPENING TYP. LINE OF CONC PAD ABOVE, SEE ARCH/MECH SEE ARCH/MECH OPENING FOR DUCT 3/16 TYP 3/16 TYP TYPICAL 12" MAX.
