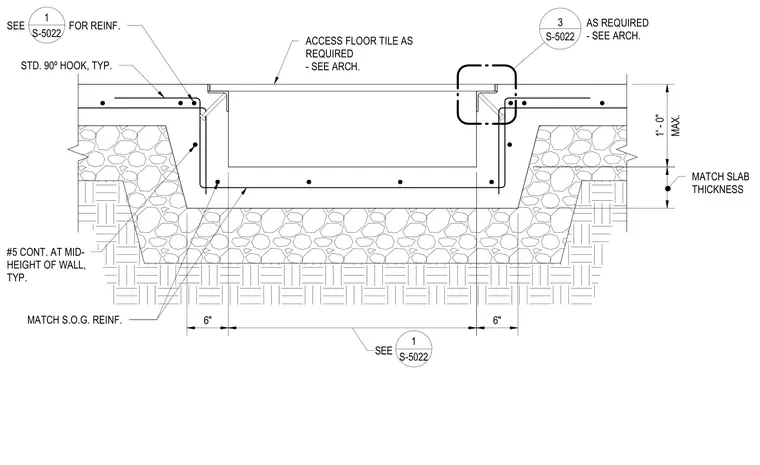

A cast-in-place floor box opening is recessed into a slab-on-grade. The assembly features a depressed concrete trench matching the slab thickness with a maximum depth of one foot zero inches, reinforced with continuous number five reinforcing bars at the mid-height of the wall and standard ninety-degree hooks typically. Slab reinforcement matches the existing slab-on-grade design and extends around the perimeter angles. Access floor tiles and associated finishes are provided as required per architectural drawings.
1 S-5022 S-5022 3 AS REQUIRED - SEE ARCH. ACCESS FLOOR TILE AS REQUIRED - SEE ARCH. STD. 90º HOOK, TYP. #5 CONT. AT MID- HEIGHT OF WALL, TYP. MATCH S.O.G. REINF. MAX. 1' - 0" 6" SEE 6" MATCH SLAB THICKNESS SEE FOR REINF. 1 S-5022
