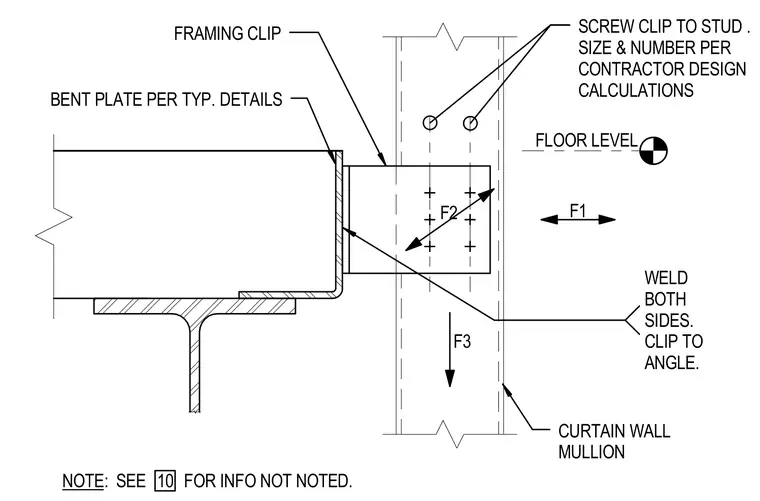

A framing clip connects to a curtain wall mullion using screws sized per contractor design calculations. A bent plate per typical details attaches to the supported beam and the clip. The clip is welded on both sides to the angle. Floor level notes and additional information references apply as shown.
FLOOR LEVEL NOTE: SEE FOR INFO NOT NOTED. BENT PLATE PER TYP. DETAILS SCREW CLIP TO STUD . SIZE & NUMBER PER CONTRACTOR DESIGN CALCULATIONS CURTAIN WALL MULLION WELD BOTH SIDES. CLIP TO ANGLE. FRAMING CLIP F1 F3 F2 10
