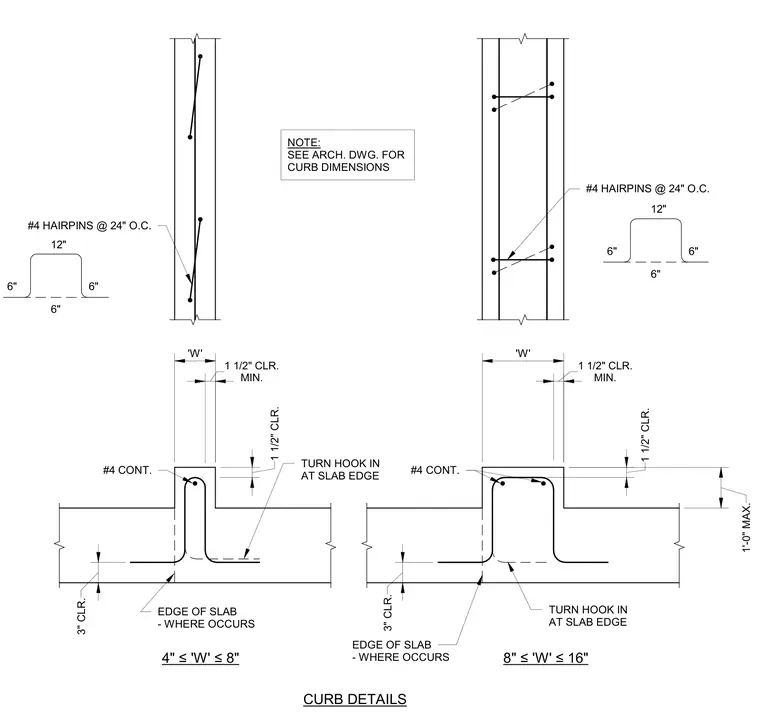

An interior non-structural concrete curb is formed on a slab on grade, featuring continuous #4 reinforcement and #4 hairpins spaced at 24 inches on center. The assembly accommodates curb widths ranging from 4 inches to 8 inches and 8 inches to 16 inches, maintaining a maximum height of 1 foot. Reinforcement details include 1 1/2 inch minimum clearance at the top, 3 inch clearance at the bottom, and hooks turned inward at the slab edge. Architectural drawings must be referenced for specific curb dimensions and locations where the edge of slab occurs.
12" 6" 6" 6" #4 HAIRPINS @ 24" O.C. NOTE: SEE ARCH. DWG. FOR CURB DIMENSIONS 12" 6" 6" 6" #4 HAIRPINS @ 24" O.C. 'W' MIN. 1 1/2" CLR. 1 1/2" CLR. TURN HOOK IN AT SLAB EDGE #4 CONT. 3" CLR. EDGE OF SLAB - WHERE OCCURS 4" ≤'W' ≤8" 8" ≤'W' ≤16" 'W' MIN. 1 1/2" CLR. 1 1/2" CLR. #4 CONT. 3" CLR. EDGE OF SLAB - WHERE OCCURS TURN HOOK IN AT SLAB EDGE CURB DETAILS 1'-0" MAX.
