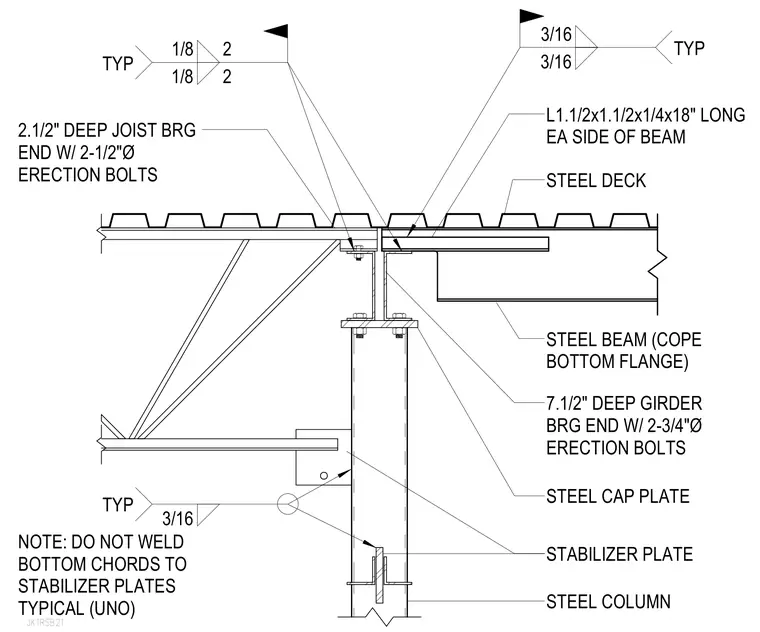

An open web steel joist and a steel beam with a coped bottom flange bear on a steel column fitted with a steel cap plate. The joist bearing end connects with two 1/2-inch-diameter erection bolts, and the girder bearing end connects with two 3/4-inch-diameter erection bolts. An angle measuring 1-1/2 by 1-1/2 by 1/4 inches and 18 inches long is welded to each side of the beam with a 3/16-inch fillet weld. A stabilizer plate is welded to the column, and the bottom chords are left unwelded to the stabilizer plates unless noted otherwise.
JK1RSB21 STEEL COLUMN STEEL CAP PLATE STEEL BEAM (COPE BOTTOM FLANGE) STEEL DECK L1.1/2x1.1/2x1/4x18" LONG EA SIDE OF BEAM 7.1/2" DEEP GIRDER BRG END W/ 2-3/4"Ø ERECTION BOLTS NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) 1/8 2 1/8 2 TYP 3/16 3/16 TYP STABILIZER PLATE 3/16 TYP 2.1/2" DEEP JOIST BRG END W/ 2-1/2"Ø ERECTION BOLTS
