Structural · S-VBZT4

Heavy Steel Beam Splice with Bolted Flanges and Web Plate

Materials

Connections

About this detail

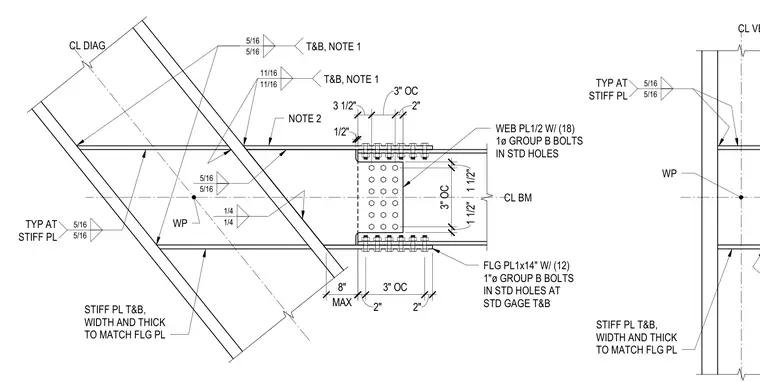

A heavy structural steel beam splice connection is assembled using a one-inch-thick by fourteen-inch-wide top and bottom flange plate fastened with twelve one-inch-diameter Group B bolts in standard holes at standard gauge top and bottom. A one-half-inch web plate connects the web using eighteen one-inch-diameter Group B bolts in standard holes. Top and bottom stiffener plates match the flange plate width and thickness, welded with five-sixteenth-inch fillets. A diagonal member intersects the assembly with a work point alignment, welded using five-sixteenth-inch and one-quarter-inch fillet welds. All components are aligned along the beam centerline and vertical work point.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
