Tilt-Up Concrete Panel Corner Joint Connection Detail

Materials

Concrete Steel

Elements

Roofs Decks Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

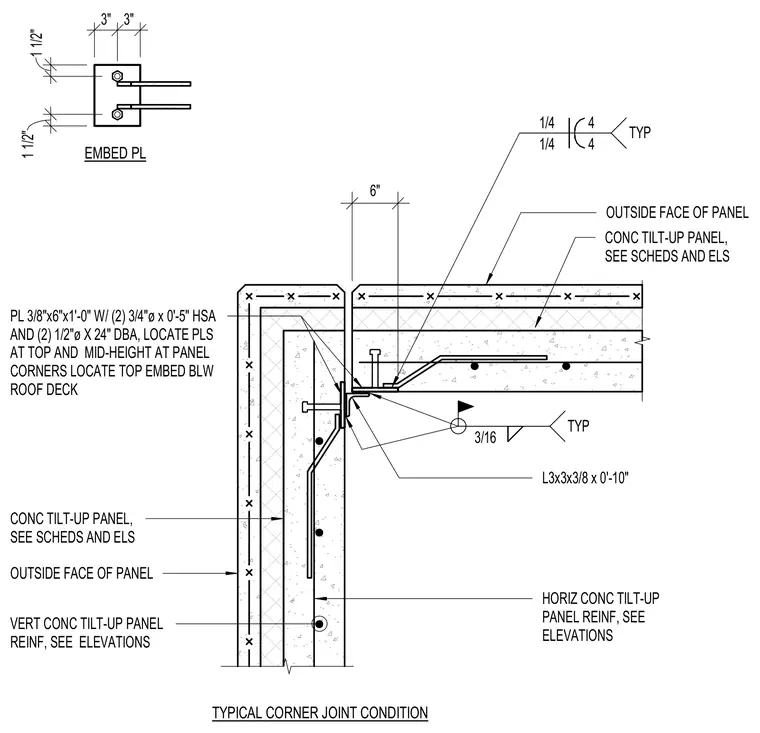

A typical corner joint connection between two concrete tilt-up wall panels utilizes an L3x3x3/8 angle measuring zero feet ten inches in length, welded with three-sixteenth-inch fillet welds typical at the joint. An embed plate measuring three-eighths by six inches by one foot zero inches is anchored using two three-quarter-inch-diameter by zero-foot-five-inch HSA anchors and two half-inch-diameter by twenty-four-inch DBA anchors. These embed plates are located at the top and mid-height at panel corners, with the top embed positioned below the roof deck. Vertical and horizontal concrete tilt-up panel reinforcement is provided as specified in the structural schedules and elevations.
