Mechanical or electrical equipment is mounted to a structural wall using threaded anchors secured with nuts and washers. The equipment extends outward with a maximum depth of twenty-four inches.

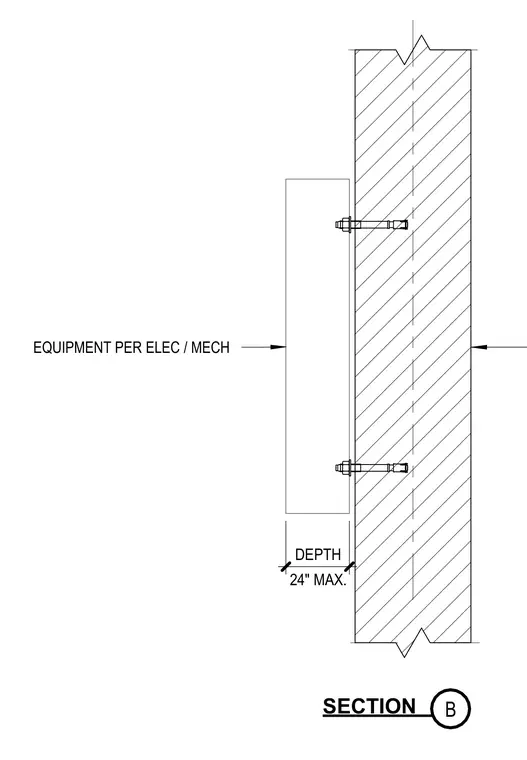

SECTION EQUIPMENT PER ELEC / MECH 24" MAX. DEPTH B
