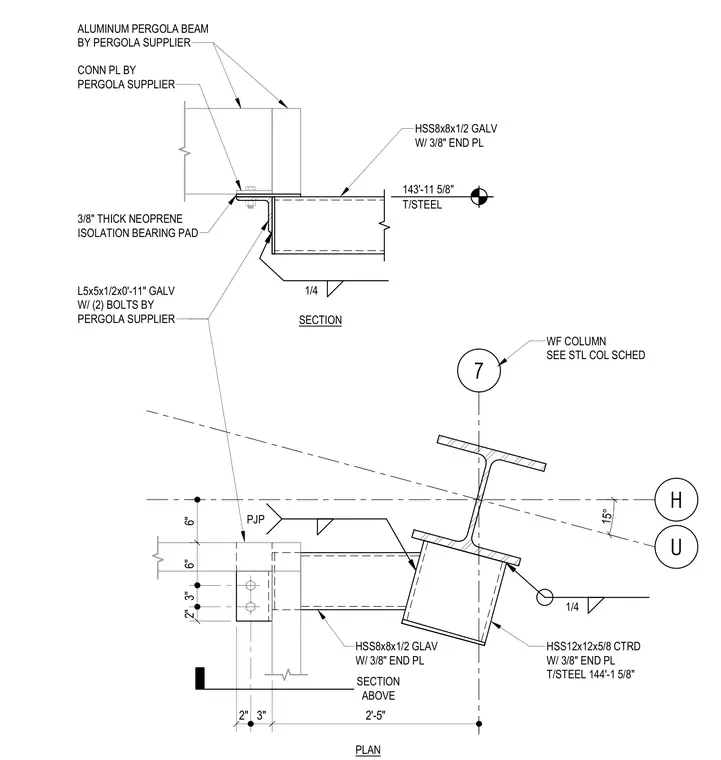

An aluminum pergola beam connects to a galvanized hollow structural section branch via a connection plate and a three-eighths inch thick neoprene isolation bearing pad, secured by a galvanized angle with two bolts provided by the pergola supplier. The support structure incorporates a wide flange column and a centered hollow structural section beam with a three-eighths inch end plate, joined with partial joint penetration and quarter-inch fillet welds.
15° 2" 3" 2'-5" 2" 3" 6" 6" HSS12x12x5/8 CTRD W/ 3/8" END PL T/STEEL 144'-1 5/8" HSS8x8x1/2 GLAV W/ 3/8" END PL SECTION ABOVE WF COLUMN SEE STL COL SCHED 1/4 PJP H U 7 CONN PL BY PERGOLA SUPPLIER ALUMINUM PERGOLA BEAM BY PERGOLA SUPPLIER 3/8" THICK NEOPRENE ISOLATION BEARING PAD L5x5x1/2x0'-11" GALV W/ (2) BOLTS BY PERGOLA SUPPLIER 1/4 T/STEEL 143'-11 5/8" SECTION PLAN HSS8x8x1/2 GALV W/ 3/8" END PL
