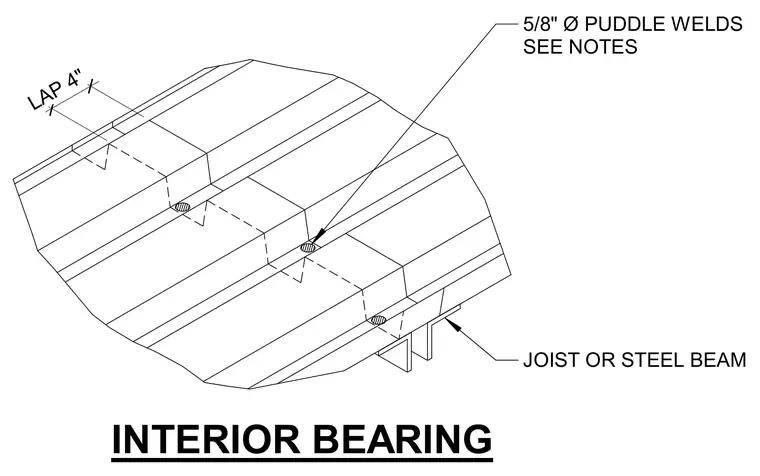

An interior metal deck bears directly on a steel beam or open-web joist below. The metal deck panels feature a four-inch lap along their edge. Five-eighth-inch diameter puddle welds secure the deck to the supporting steel member per structural notes.
