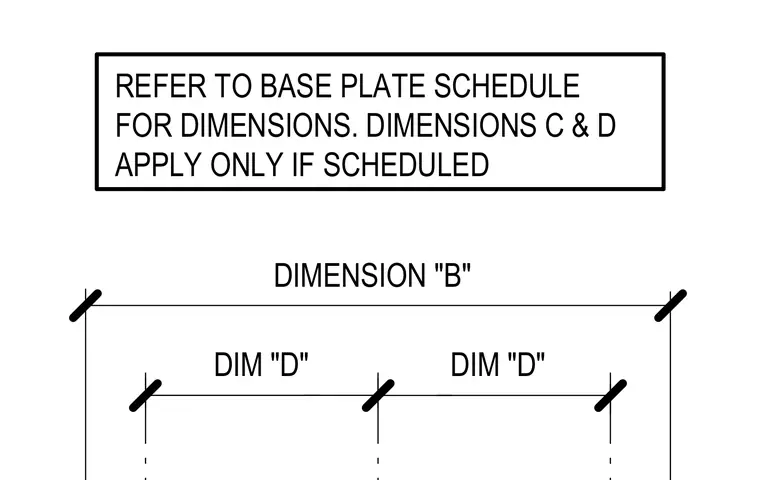

Base plate dimensioning is governed by the structural base plate schedule, with specific dimensions C and D applying only when explicitly scheduled. Dimension B establishes overall sizing parameters while conditional dimensions are tied to schedule requirements.
DIMENSION "B" DIM "D" DIM "D" REFER TO BASE PLATE SCHEDULE FOR DIMENSIONS. DIMENSIONS C & D APPLY ONLY IF SCHEDULED
