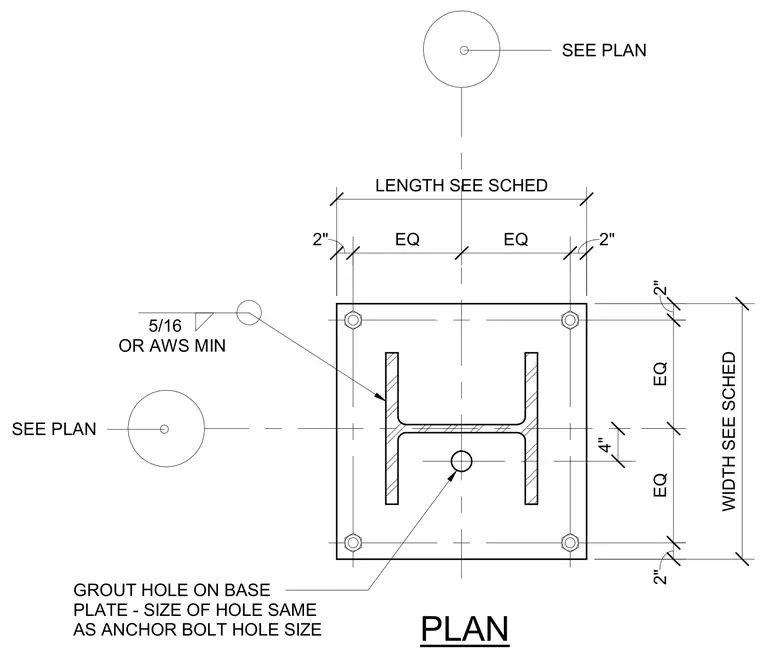

A structural steel column base plate plan features four corner anchor bolts set symmetrically with equal spacings and two-inch edge clearances. A four-inch diameter grout hole is positioned at the center of the base plate, matching the anchor bolt hole size. The column profile is welded to the base plate using a five-sixteenth inch fillet weld or AWS minimum specification. Plate length and width dimensions are sized per schedule, with centerlines aligned to plan coordinates.
SEE PLAN SEE PLAN PLAN OR AWS MIN 5/16 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE
