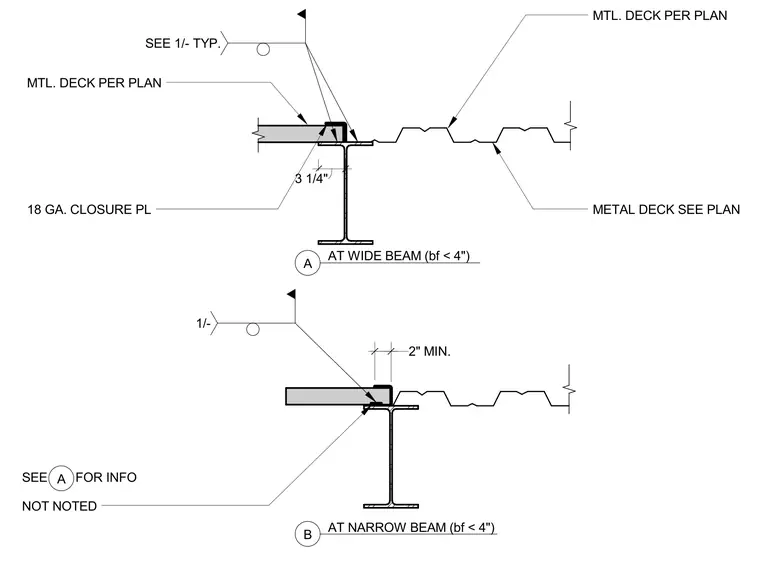

Metal deck transition details at wide and narrow steel support beams featuring an eighteen gauge closure plate. The assembly accommodates a change in metal deck direction over a structural steel beam. An eighteen gauge closure plate is provided at the beam edge with specified dimensional clearances. Details indicate conditions for both wide and narrow beam flanges.
3 1/4" METAL DECK SEE PLAN MTL. DECK PER PLAN 18 GA. CLOSURE PL AT WIDE BEAM (bf < 4") AT NARROW BEAM (bf < 4") A B SEE FOR INFO NOT NOTED A 1/- 2" MIN. SEE 1/- TYP. MTL. DECK PER PLAN
