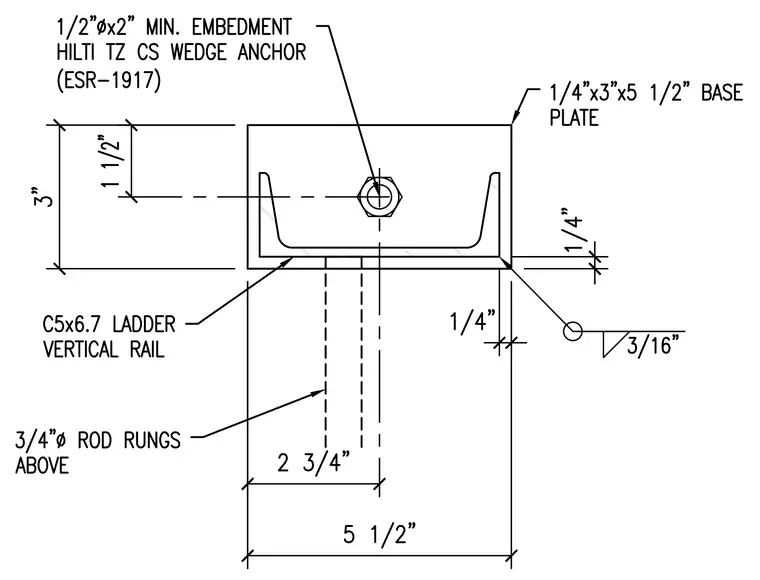

A C5x6.7 ladder vertical rail connects to a one-quarter-inch by three-inch by five-and-a-half-inch base plate with three-quarter-inch rod rungs above. The assembly is secured using a one-half-inch diameter by two-inch minimum embedment Hilti TZ CS wedge anchor with ESR-1917 approval. Fillet welds of three-sixteenths inch size connect the rail to the base plate.
