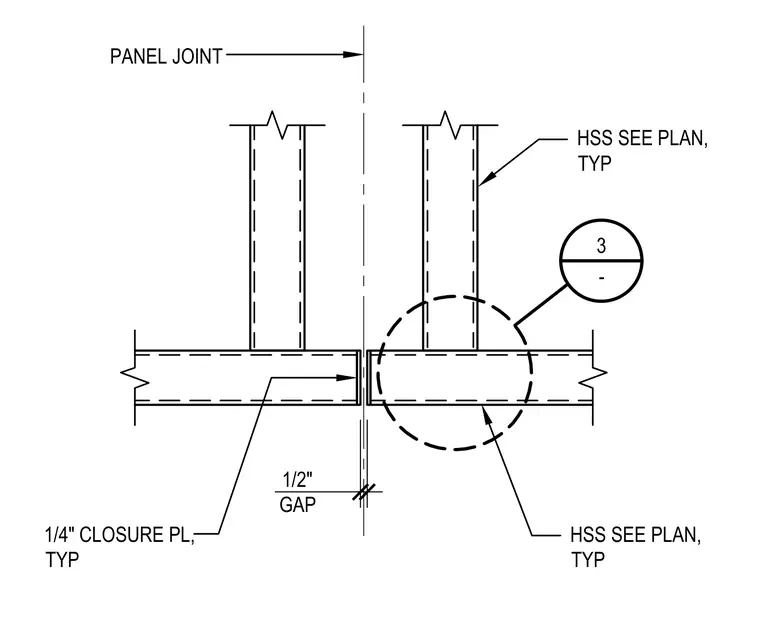

This structural detail shows a panel joint between adjacent hollow structural section framing members. The assembly maintains a half-inch gap at the centerline joint. Each framing member receives a typical quarter-inch closure plate. Member sizes are sized per plan.
1/2" GAP PANEL JOINT HSS SEE PLAN, TYP HSS SEE PLAN, TYP 1/4" CLOSURE PL, TYP 3 -
