A continuous bent plate of variable thickness is welded to the top flange of a structural steel beam to terminate the metal deck edge. A three-sixteenth-inch fillet weld spaced at twelve inches on center secures the bent plate where overhangs occur, while a three-sixteenth-inch fillet weld spaced at sixteen inches on center is used where flush. The metal deck bears on the steel beam with a one-and-a-half-inch minimum end distance. A thickness selection table specifies bent plate gauges ranging from three-sixteenths to five-sixteenths of an inch based on overhang lengths up to two feet.

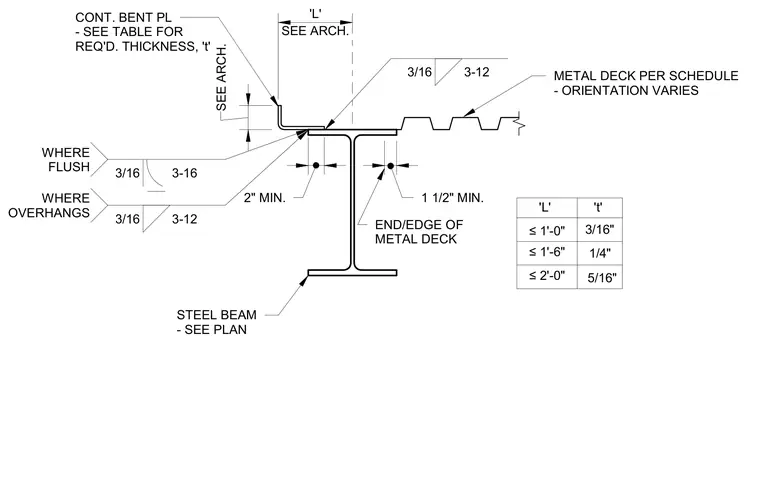

3/16 3-12 CONT. BENT PL - SEE TABLE FOR REQ'D. THICKNESS, 't' 'L' 't' ≤1'-0" ≤1'-6" ≤2'-0" 3/16" 1/4" 5/16" SEE ARCH. SEE ARCH. 'L' 3/16 3-12 WHERE OVERHANGS 2" MIN. 1 1/2" MIN. STEEL BEAM - SEE PLAN END/EDGE OF METAL DECK METAL DECK PER SCHEDULE - ORIENTATION VARIES 3/16 3-16 WHERE FLUSH
