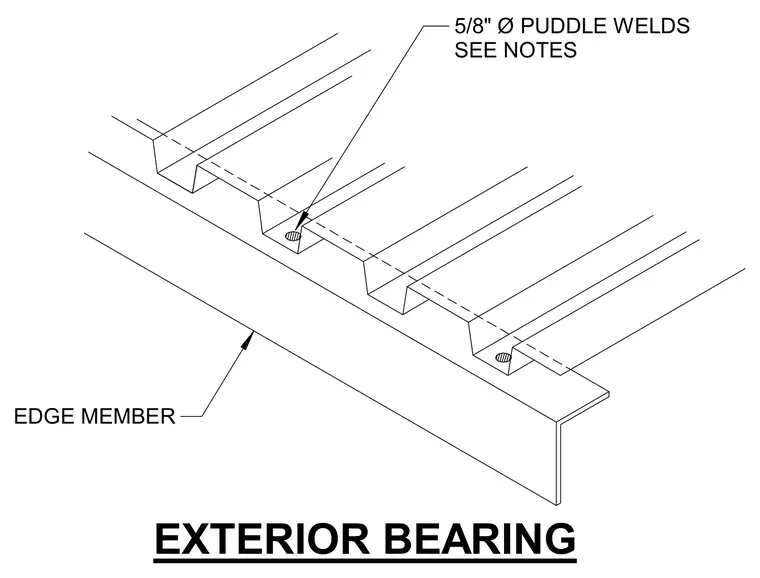

Metal deck bearing on an edge member is secured with five-eighths inch diameter puddle welds located at each flute per structural notes.
